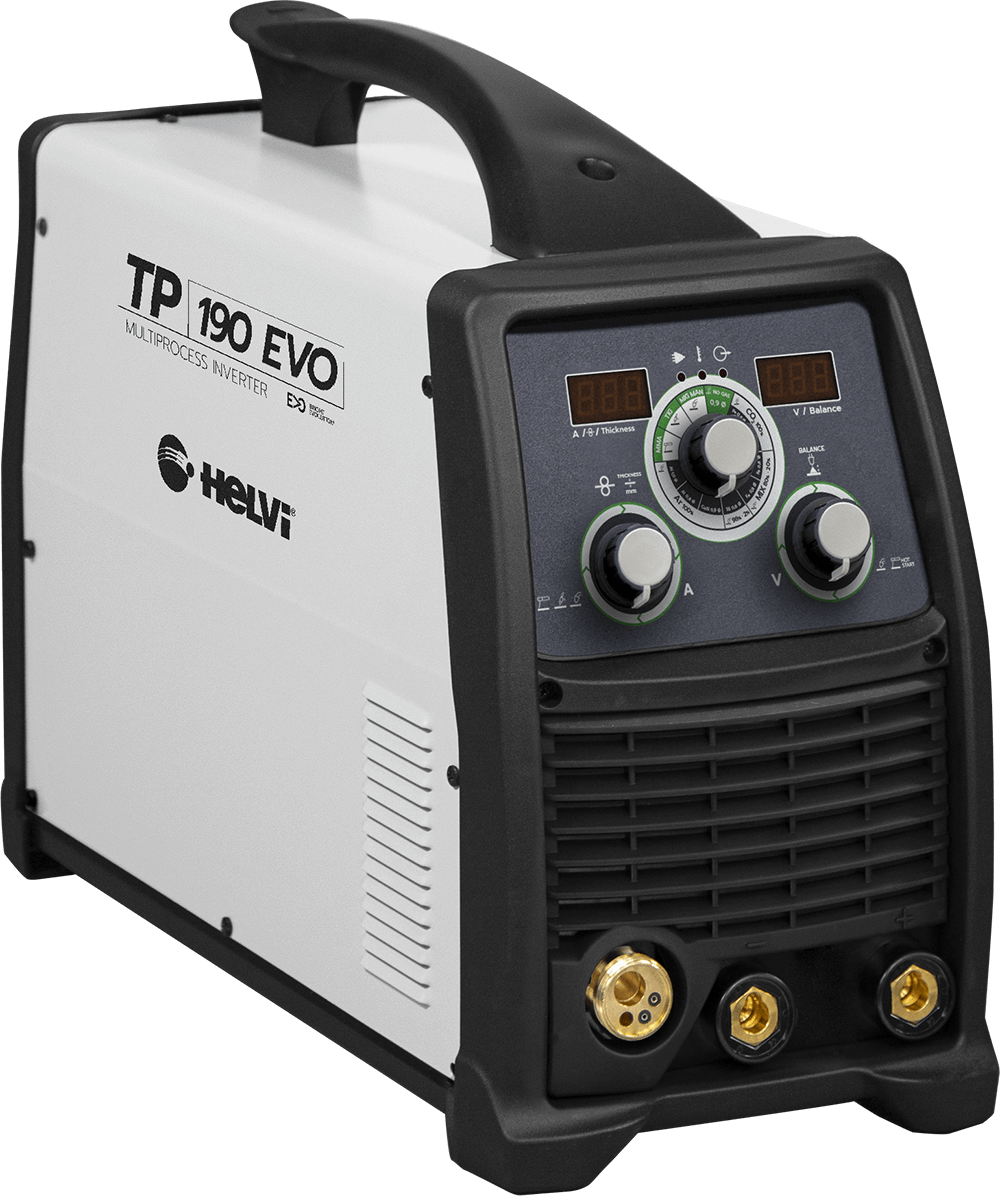

TP 190 EVO

Descrizione

Dati tecnici

	MIG	MMA	TIG
Input voltage (1ph)	230V 50/60Hz
Power 30%	6,1 KVA
No load output voltage	70 V	70 V	70 V
Amp. min-max	25 ÷ 180 A	20 ÷ 180 A	5 ÷ 180 A
Duty Cycle 40°	180A @ 20% 105A @ 60% 75A @ 100%	180A @ 20% 105A @ 60% 75A @ 100%	180A @ 20% 105A @ 60% 75A @ 100%
Insulation	H
Protec. Degree	IP22S
Machine (LxWxH)	230x400x400 mm
Weight box/net	-
Code	99820063

Download

Scheda tecnica (156.9 kb) Aggiornata al 01/09/2024

Caratteristiche

EAC

EcoDesign

EN 60974-1 / EN 60974-10

Air cooling

Power generator friendly

Power generator friendly 10 KVA

Line voltage compensation

Display

50mm

MIG

MIG_WireSpool_1-5Kg

MIG_Gas/No Gas

MIG_Plastic wire feeder 2 rolls

MMA

MMA_AntiSticking

TIG

TIG_LiftArc

Applicazioni

Light industry| Farming| Service/Maintenance| Heavy industry| Structural construction| Automotive| Vehicle customizing

Accessori inclusi

Rullino • Ø 30 mm • 0,6 - 0,8 mm

cod. 33805003

Accessori extra

Pressure regulator ECO mini CO₂ + Adaptor for gas bottle Argon / CO₂

cod. 22905029K

TRAFIMET ERGO PLUS 25 · 3 mt · Black/Blue · Euro connection

cod. 23000494

TRAFIMET ERGO PLUS 25 · 4 mt · Black/Blue · Euro connection

cod. 23000495

Tig 26V · 4 mt · with gas valve · conn. 50 mm2 · Consumables KIT Ø 2,4 mm · Air cooled

cod. 23020199

Welding cable with electrode holder - 3m - 16mm2 - 180 Amp - 50mm2 connector

cod. 43205049K

Welding cable with electrode holder - 3m - 25mm2 - 250 Amp - 50mm2 connector

cod. 43205040K

Ground cable with clamp - 3m -25mm2 - 300 Amp - 50mm2 connector

cod. 43210132K

Ground cable with clamp - 3m - 35mm2 - 400 Amp - 50mm2 connector

cod. 43210142K

Ground cable with clamp - 3m - 50mm2 - 500 Amp - 50mm2 connector

cod. 43210076K

Rullino • Ø 30 mm • 0,6 - 0,8 mm

cod. 33805003

Rullino • Ø 30 mm • 0,8 - 1,0 mm • per Alluminio

cod. 33805104

Rullino • Ø 30 mm • 0,8 - 1,0 mm

cod. 33805101

Rullino • Ø 30 mm • 0,6 - 0,9 mm • per filo animato NoGas

cod. 33805071

Trolley

cod. 99900171A

Trolley HD AIR

cod. 99900258

Trolley · 4 ruote + ripiani · HD

cod. 99900258A
