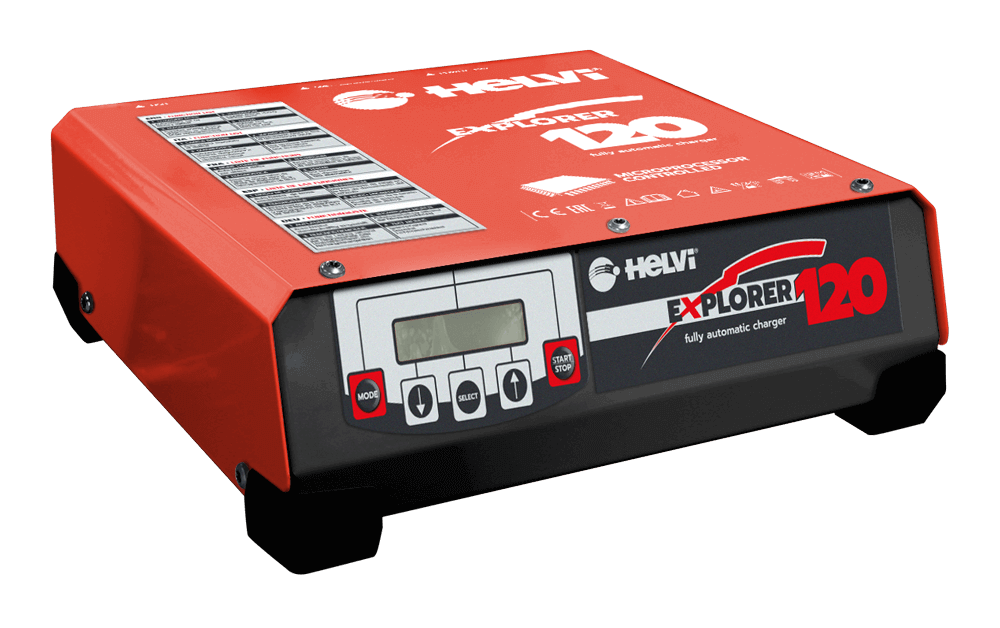

Explorer 120


PERFECT FOR BATTERY SUPPORT DURING DIAGNOSTIC AND REPROGRAMMING Our new multi-process battery charger EXPLORER 120 is designed with the latest inverter technology and its fully connected. Capable of charging up to 100Amp. It can charge 12V batteries, both Lead (Gel, AGM, Liquid, Calcium) and Lithium (LiFePO4). Perfect as equipment to support the battery during diagnostic (reprogramming) or showroom needs. 4 Operating Modes: Charge: for 12 V Lead (Gel, AGM, Liquid, Calcium) or Lithium (LiFePO4) batteries from 5 to 1200 Ah • Diagnostic: battery support function up to 100Amp for 12V batteries during the reprogramming of the vehicles’ PCBS or during diagnostic test • Showroom: provides the battery with current compensation when using the electrical accessories of a demonstration vehicle • Tester: possibility to test the vehicle’s battery. Alternator test or boosting test. Automatic Charge: Model Explorer 120 is equipped with an “Automatic Charge” mode which allows to extend the battery life and performance. The software in charging mode has 2 different charging curves between Lead and Lithium batteries. 8 step charge for Lead and 9 step charge for Lithium batteries. Advanced Modes: In addition to the functions listed above, the Explorer 120 battery charger has advanced modes such as: "Auto-detect" charging process that allows the start of the charge in automatic mode • "Auto-restart" function: in case of power failure the device restarts from the stop point • Calibration function in case of charging cables over 5 meters (8 meters max) • 11 customizable profiles: possibility to save customized profiles according to the user preference Other Features: USB port: Possibility to add, cancel or change the charging modes thanks to USB devices. Possibility to extract data for analysis. •• 100% safe: it has various control and safety systems. Protection against short-circuits, reverse polarity, overcharging. Equipped with temperature sensor to prevent electronic part overheating • Shockproof and anti-vibration structure • Without external ventilation. Advantages: silent operation and no infiltration of dust or dirt from the outside

Technical data
Input voltage (1ph) 230 V - 50/60 Hz
Power 1600 W
Battery voltage 12 V
Charging current 100 A
Rated Ref. Cap. 1200 Ah 15h
Charging pos.
Machine (LxWxH) 320x292x110 mm
Package (LxWxH) 345x230x350 mm
Weight box/net 8,6 / 4,7 Kg
Code 99000084


Data sheet - Explorer 120 (1.5 Mb) Updated 22/11/2021
Instructions Manual - Explorer 120 (2.8 Mb) Updated 22/11/2021


CE EAC 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Electronic control LCD Display Automotive Chargers Chargers_Bike Chargers_cars Chargers_Van Chargers_Nautical Chargers_Tractors Chargers_Heavy equip Chargers_trucks Charger_Forklift Chargers_generators Chargers_timer Chargers_Desulphation Tester battery Tester alternator Chargers_Supply Charger_Maintenance Battery_pb Battery_Gel Battery_Ca/Ca Battery_AGM Battery_Start/Stop Battery_LiFePO4
