Product line

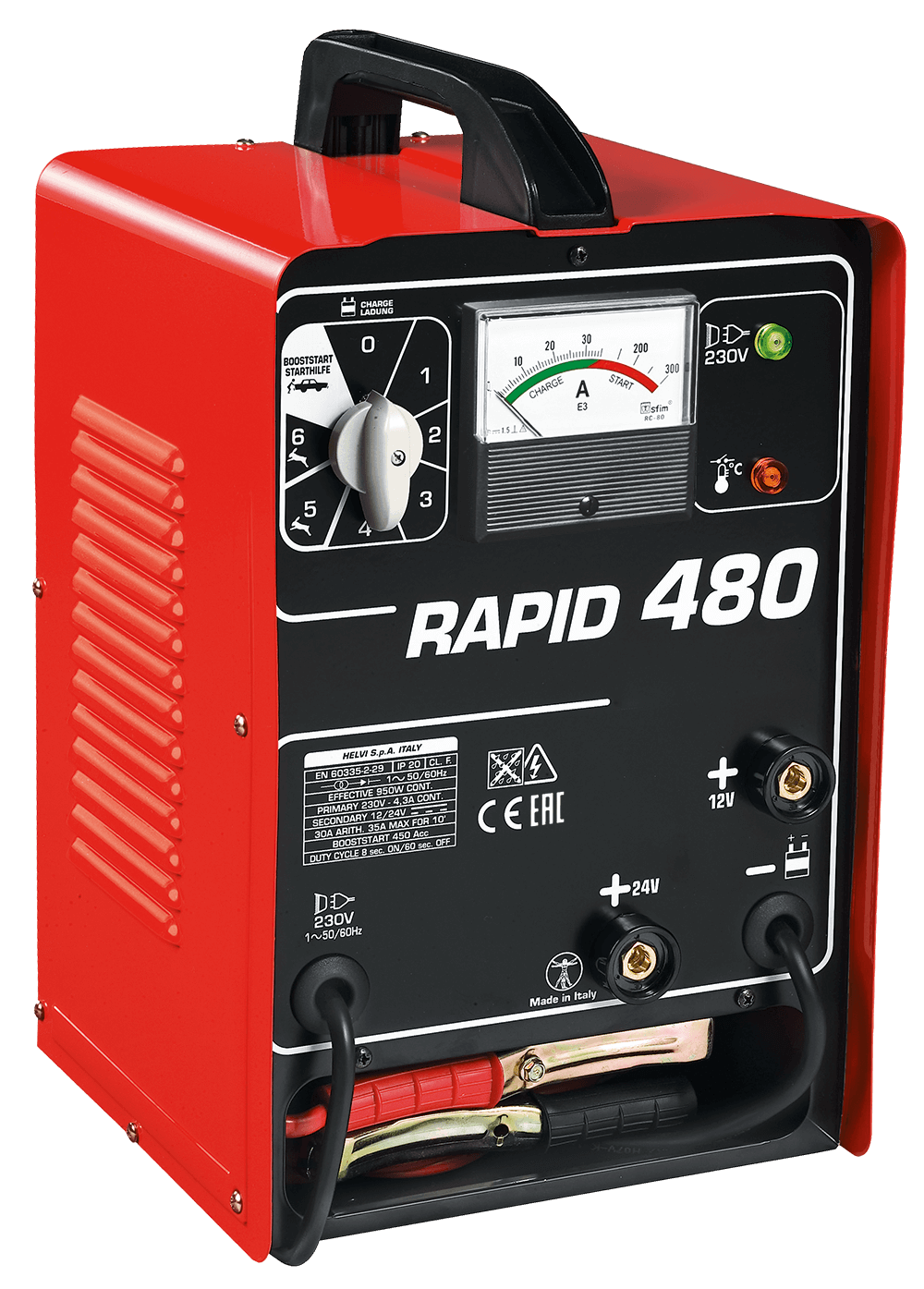

Rapid 480


Portable battery chargers and starters. Equipped with charging current control selector, ammeter, thermal overload protection, internal fuse protection against short circuits and polarity reversal.

Technical data
Input voltage (1ph) 230 V - 50/60 Hz
Power 1320 W
Battery voltage 12/24 V
Max charging current 55 A
Charging current 36 A
Max. boosting current 450 Acc
Boosting current 315 A
Rated Ref. Cap. 540 Ah 15h
Charging pos. 6 + Boost
Machine (LxWxH) 245x250x435 mm
Package (LxWxH) 280x285x465 mm
Weight box/net 20,4 / 19,8 Kg
Code 99005053


Data sheet - Rapid 480 (1.5 Mb) Updated 21/11/2019
Spareparts list - Rapid 480 (75.3 kb) Updated 21/11/2019
User manual (1.1 Mb) Updated 21/11/2019


CE EAC 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Conventional 25mm Automotive Chargers Starters Chargers_cars Chargers_Van Chargers_Nautical Chargers_Tractors Battery_pb


Farming| Automotive| DIY
