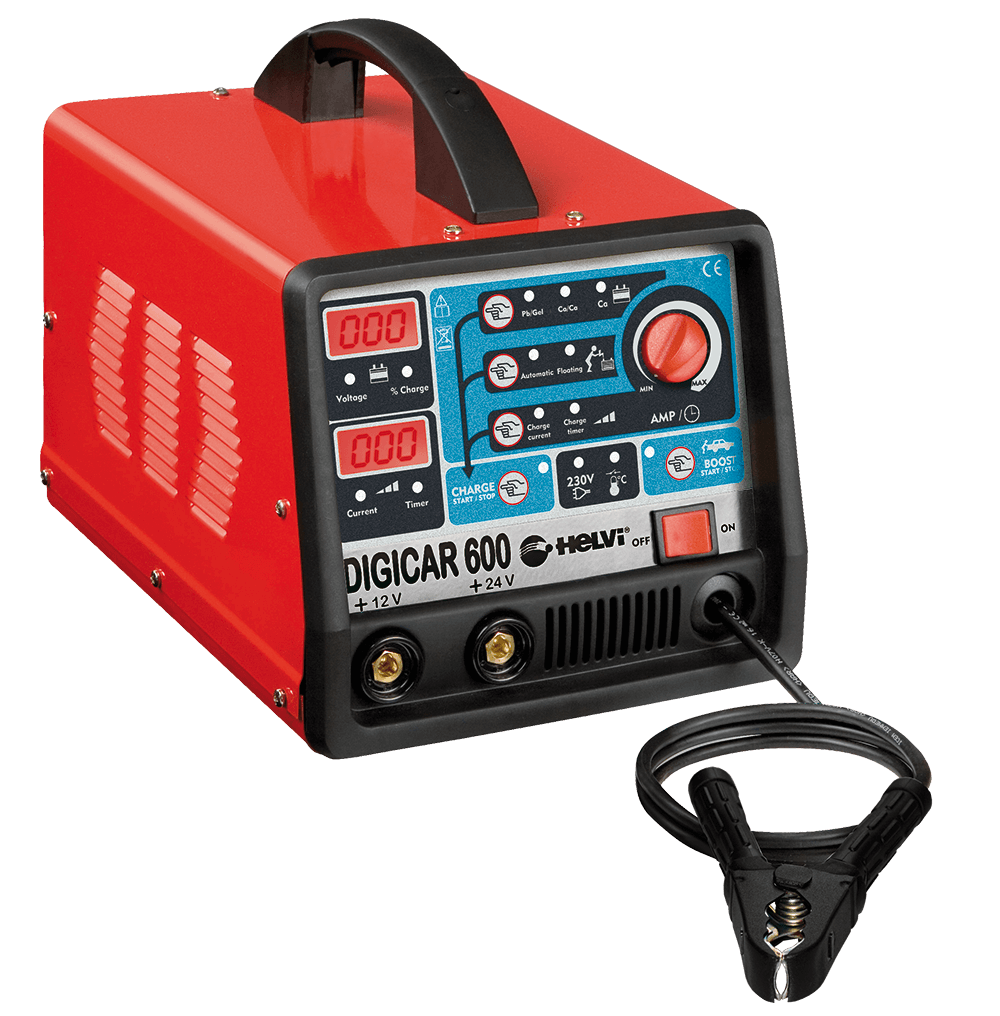

Digicar 600

Description

New generation of professional battery chargers featuring electronical overvoltage protections in the charge and boost functions.This battery charger is fit to start modern motor vehicles, avoiding the risk of damages to the vehicle electronic devices.Equipped with charge current selector, digital ammeter, Thermal Overload protection, internal fuse protection against short circuits and polarity reversal, charge timer.The charge function is carried out without output voltage peaks which could damage the electronic cards fitted on motor vehicles. Ideal for charging the AGM, gel, calcium and lead batteries with which modern vehicles are equipped. Provided with charging current digital regulation, operating at 3 levels: constant current, constant voltage and floating final charging (automatic charge stop). Automatic charging and maintenance function.

Technical data
Input voltage (1ph) 230 V - 50/60 Hz
Power 900 W
Battery voltage 12/24 V
Amp. Eff.3838 38 A
Amp. 60335-2-29 25 A
Max. boosting current 450 Acc
Amp 1/C 320
Rated Ref. Cap. 375 Ah 15h
Machine (LxWxH) 345x250x280 mm
Package (LxWxH) 440x275x255 mm
Weight box/net 20 / 19,3 Kg
Code 99005047

Download

Data sheet - Digicar 600 (2.4 Mb) Updated 21/11/2019
Spareparts list - Digicar 600 (171.2 kb) Updated 21/11/2019
User manual (2.9 Mb) Updated 21/11/2019

Features

CE EAC 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Conventional Patented Display 25mm Automotive Chargers Starters Chargers_cars Chargers_Van Chargers_Nautical Chargers_Tractors Chargers_timer Chargers_Full_CPS Battery_pb Battery_Gel Battery_Ca/Ca Battery_AGM Battery_Start/Stop

Applications

Farming| Automotive| DIY
