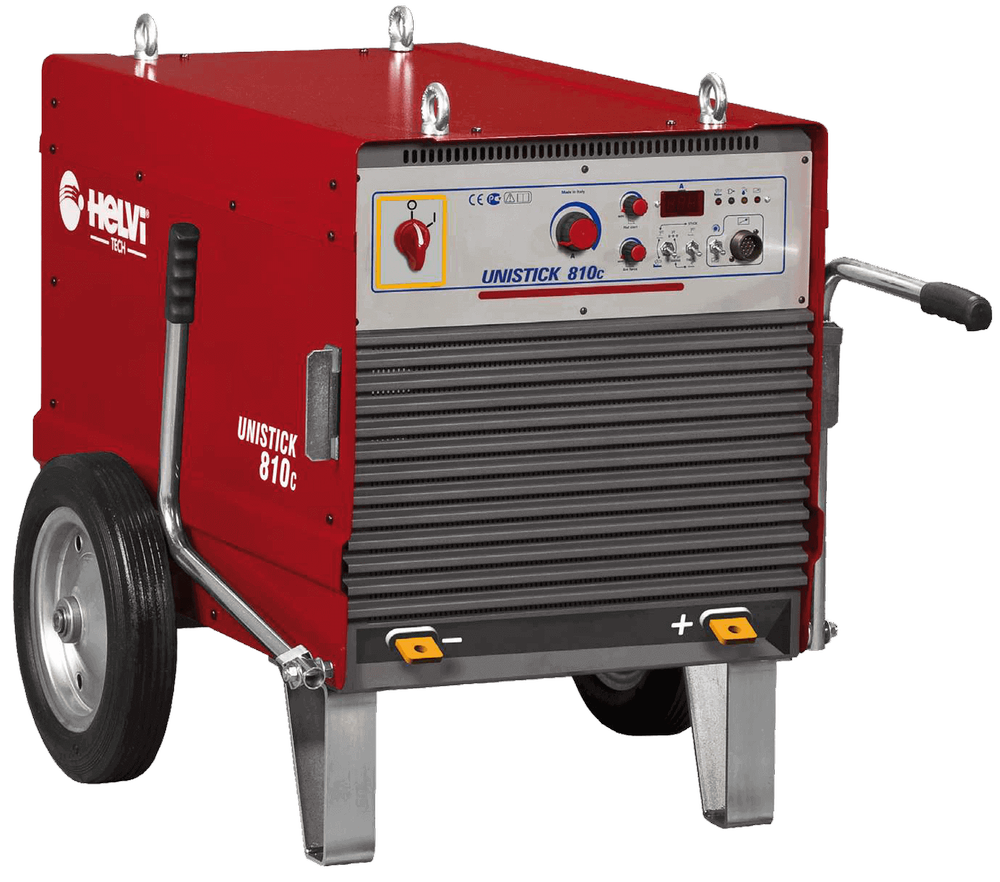

Unistick 810C


Three-phase DC stick welding unit with thyristor control. Excellent welding using all varients of coated electrodes and particularly aluminium and cellulosic electrodes. Equipped with external control of the Hot Start and Arc Force percentages.Suitable for gouging. Ideal to weld for the most demanding welding applications: shipyards, oil pipelines etc. The unit is equipped with socket for remote control. Specially designed to be used with carbon electrodes.

Technical data
Input voltage (3ph) 400V - 50/60Hz
Power 60% 43 KVA
No load output voltage 8 0  V
Amp. min-max 20 ÷ 700 A
Duty Cycle 40° 700A @ 50%
670A @ 60%
500A @ 100%
Ø E 2 ÷ 13 mm
Insulation H
Protec. Degree IP23S
Machine (LxWxH) 1270x790x850 mm
Package (LxWxH) 1150x750x985 mm
Weight box/net 352 / 312 Kg
Code 99225023


User manual (8.6 Mb) Updated 13/10/2021
Data sheet - Unistick 810C (447.6 kb) Updated 13/10/2021


CE EAC 3ph EN 60974-1 / EN 60974-10 Air cooling Fan on demand Conventional Thyristor control DC Display Remote control - 14 pin Heavy Duty MMA MMA_ArcForce MMA_HotStart MMA_Gouging MMA_Rutile/Basic MMA_Cellulosic/Aluminium TIG
