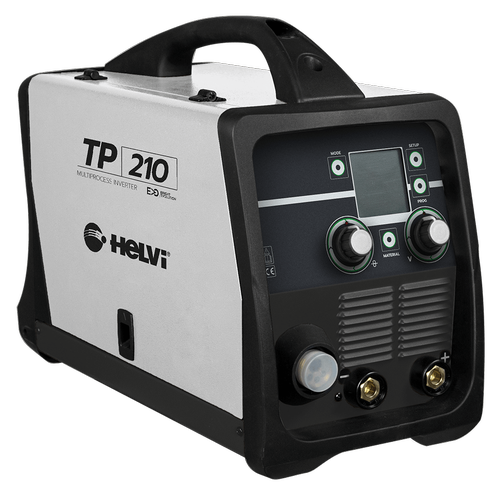

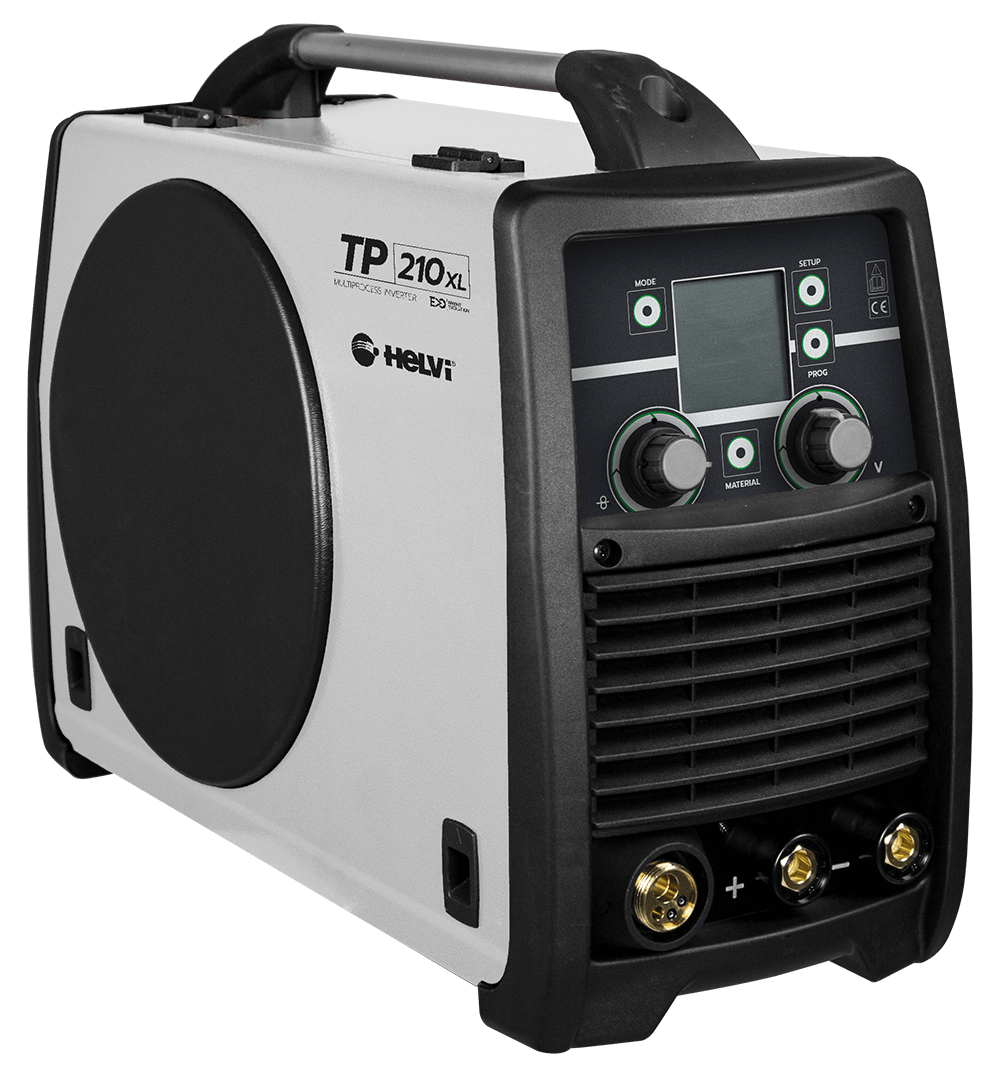

Tp 210 XL


Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters. In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Slope-up motor settting and automatic soft start wire feed control of the arc. All functions can be easily selected on the front panel. The Digital LCD display shows the welding voltage and current and all the parameters selected. TP210 XL is fitted to accept reels with diameter of 300mm and 200mm. Their simplicity and versatility make them perfect for use in body shops, workshops and for all maintenance tasks.

Technical data
Input voltage (1ph)                         230V 50/60Hz
Power 30%                             5,5 KVA
No load output voltage 35 V 50 V 35 V
Amp. min-max  30 ÷ 200 A 10 ÷ 200 A 5 ÷ 200 A
Duty Cycle 40° 200A @ 35%
120A @ 100%
200A @ 35%
120A @ 100%
200A @ 35%
140A @ 100%
Steel Ø  0,6 ÷ 1,0 mm
Stainless Steel Ø  0,8 ÷ 1,0 mm
Alumnium Ø  0,8 ÷ 1,2 mm
Flux core Ø  0,8 ÷ 1,0 mm
Brazing Ø  0,8 ÷ 1,0 mm
Ø E   1,6 ÷ 5 mm
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 255x600x460 mm
Package (LxWxH) 295x770x510 mm
Weight box/net 24,0 / 28,6 Kg
Code 99820059K


Data sheet (674.4 kb) Updated 25/01/2022


CE EAC 1ph EN 60974-1 / EN 60974-10 Fan on demand VRD Power generator friendly Line voltage compensation Electronic control LCD Display 50mm MIG MIG_2T/4T MIG_Synergic regulation MIG_Metallic wire feeder 2 rolls MIG_Gas/No Gas MIG_WireSpool_5-15kg MMA MMA_ArcForce MMA_HotStart MMA_AntiSticking MMA_Rutile/Basic TIG TIG_LiftArc
