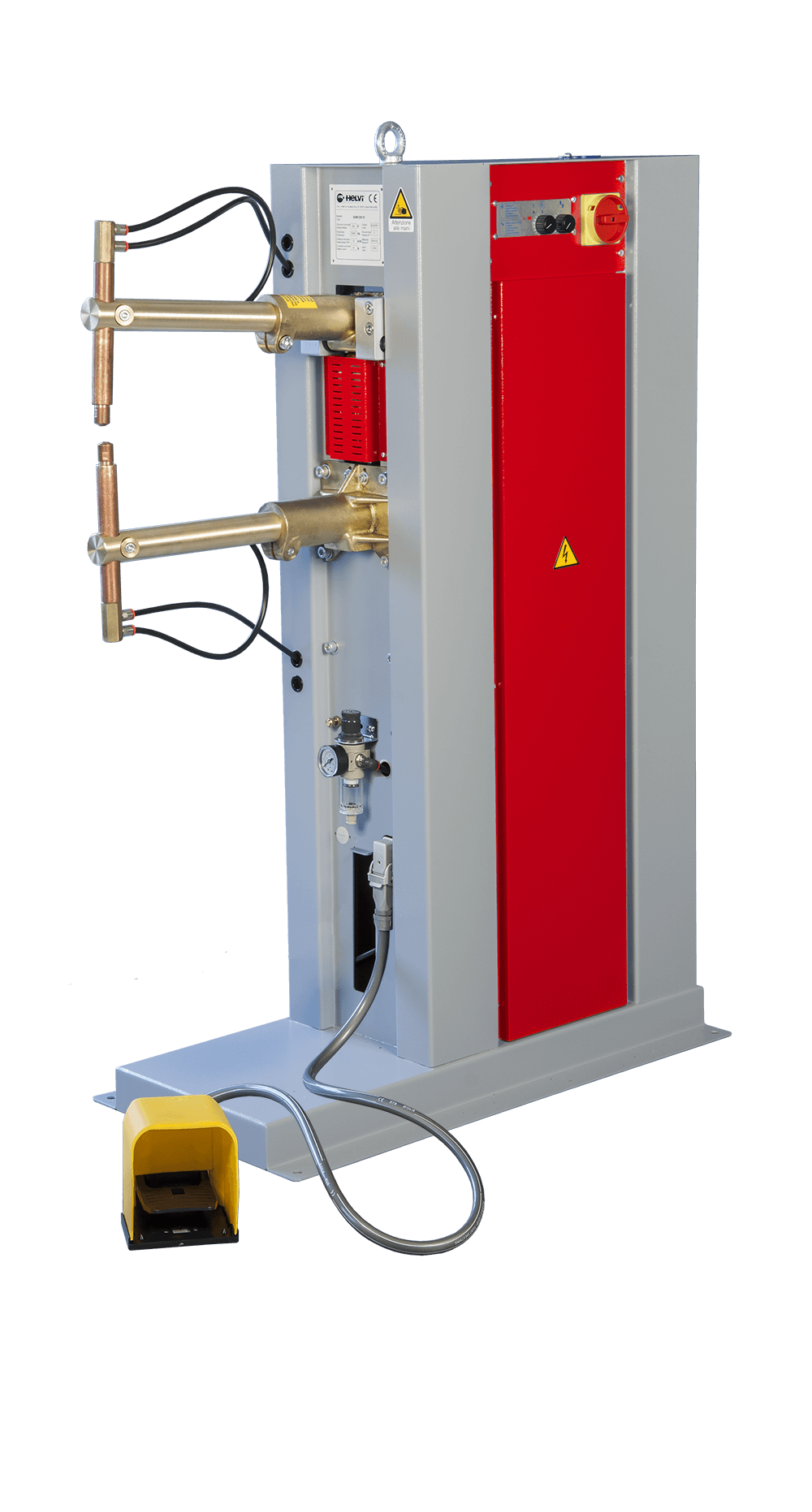

Column spot-welders with pneumatic control. Air-cooled transformer, 320 mm adjustable length arms (from a minimum lenght of 230mm to a maximum of 550mm), copper/chromium electrode holders for straight or inclined installation. Electrode stroke and pressure can be adjusted to reach maximum work rate with minimum effort. Microprocessor thyristor welding control.
Input voltage (1ph)  |
400V 50/60Hz |
| Power 50% | 15 KVA |
| Secondary | 3,2 V |
| Delayed fuses | 25 A |
| Compressed Air | 6 Bar |
| Min arms proj. | 230 mm |
| Max Arm proj. | 550 mm |
Max electrodes force (at 6 bar)  |
200 daN (6bar) |
Max welding capacity on mild steel  |
3 + 3 * mm |
| Insulation | F |
Package (LxWxH)  |
300x1020x1270 mm |
Weight box/net  |
115 / 116 kg |
| Code | 99505008 |
