Galileo 175

Description

Easy-to-use welding inverters: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control. They are equipped with STICK/TIG (lift arc) selector. They can be connected to power sources and long connection lines. They are ideal for maintenance jobs and workshops applications.

Technical data
Input voltage (1ph) 230V - 50/60Hz
Power 60% 3,3 KW
No load output voltage 60 V
Amp. min-max  5 ÷ 160 A
Amp. 60974-1 35%   160 A
60%   120 A
Ø E 1,6 ÷ 4 mm
Electrode type 6013 - 7018
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 335x140x245 mm
Package (LxWxH) 430x180x305 mm
Weight box/net 6,6 / 6,1 Kg
Code 99805892

Download

Data sheet - Galileo 175 (1.5 Mb) Updated 10/07/2017
Spareparts list - Galileo 175 (158.4 kb) Updated 10/07/2017
User manual (1.8 Mb) Updated 10/07/2017

Features

CE 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Air cooling Power generator friendly Power generator friendly 10 KVA Line voltage compensation Electronic control DC 50mm MMA MMA_ArcForce MMA_HotStart MMA_AntiSticking MMA_Rutile/Basic TIG TIG_LiftArc

Extra accessories

Adjustable face shield with electro-optical filter - Version 4.0 - 5 to 8 and 9 to 13 DIN - 4 sensors - design Eagle

cod. 21905075

Adjustable face shield with electro-optical filter - Version 4.0 - 5 to 8 and 9 to 13 DIN - 4 sensors - design Eagle

Adjustable face shield with electro-optical filter - Version 2.0 - 9 to 13 DIN - 2 sensors - design Red

cod. 21905073

Adjustable face shield with electro-optical filter - Version 2.0 - 9 to 13 DIN - 2 sensors - design Red

Pair of MIG/MMA professional welders gloves

cod. 21905086

Pair of MIG/MMA professional welders gloves

TIG torch Tig 17 V - 4m - with gas valve - 50mm2 connector

cod. 23020159

 TIG torch Tig 17 V - 4m - with gas valve - 50mm2 connector

Welding cable with electrode holder - 3m - 16mm2 - 180 Amp - 50mm2 connector

cod. 43205049K

Welding cable with electrode holder - 3m - 16mm2 - 180 Amp - 50mm2 connector

Ground cable with clamp - 2m - 16mm2 - 180 Amp - 50mm2 connector

cod. 43210091K

Ground cable with clamp - 2m - 16mm2 - 180 Amp - 50mm2 connector

Arc welding kit - 180 Amp - 16mm2 - 3 + 2 m - dinse 50mm2

cod. 99900045

Arc welding kit - 180 Amp - 16mm2 - 3 + 2 m - dinse 50mm2

Contact us

At your service for everything!


Similar products

Galileo 175 + Kit carry case

Easy-to-use welding inverter: optimum welding performance with all types of commercial electrodes

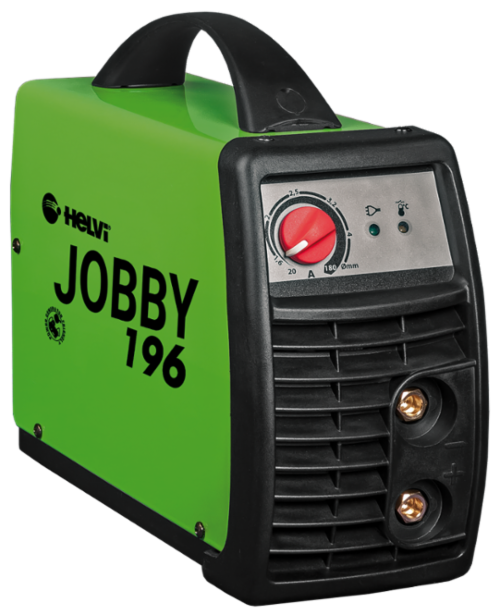

Jobby 196
