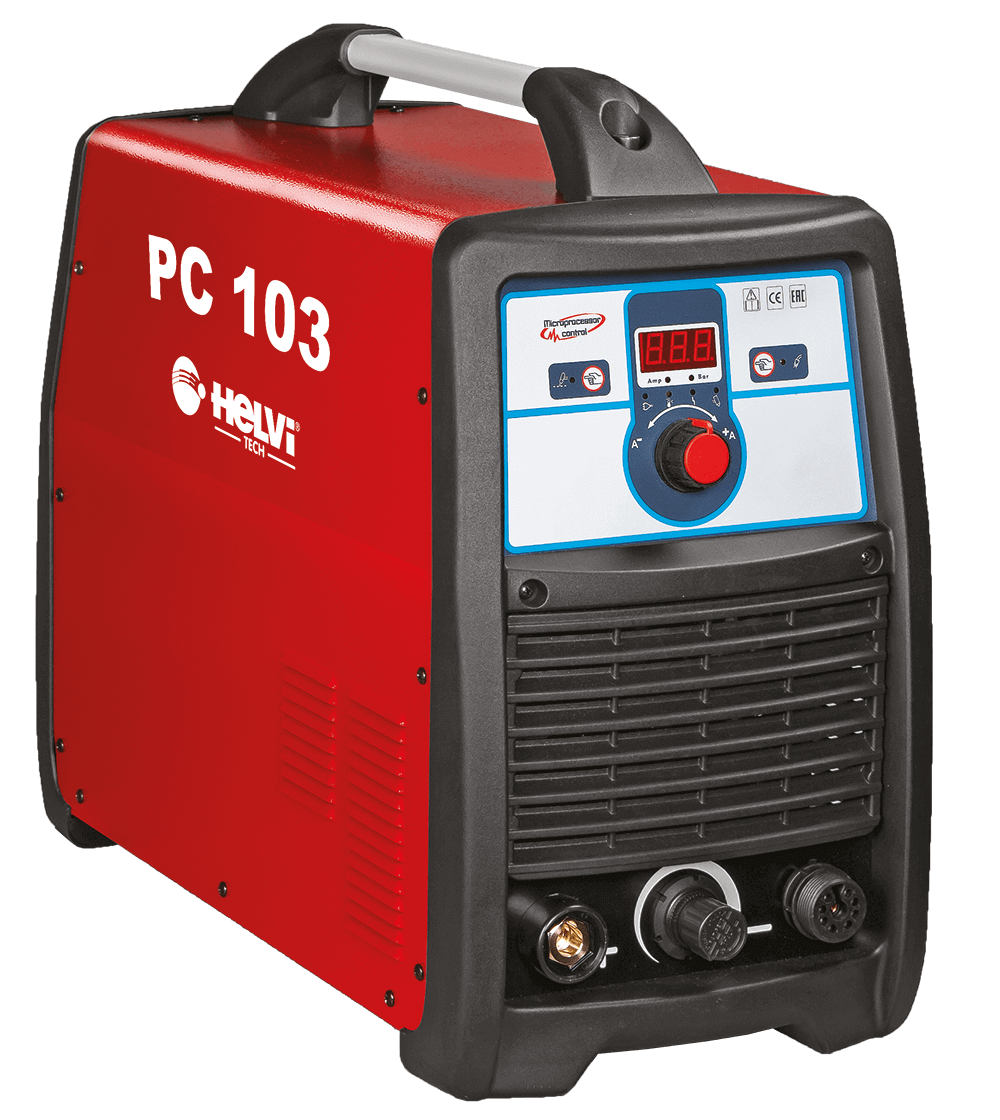

PC 103

Description

Plasma cutter, based on Inverter technology, guarantees accurate and clean plasma cut. Easy to handle and operate, this system is suitable for cutting materials at high speed. The front panel is provided with clear and simple graphics for the adjustment of the cutting current and to indicate the intervention of any of the internal safety devices.

Technical data
Plasma torch PT 100
Input voltage (3ph) 400V - 50/60Hz
Power 50% 15 KVA
Max Input current 26,5 A
No load output voltage 275 V
Range 20 ÷ 100 A
Cutting current 100A @ 60%
Clean cutting capacity 25cm/min 28 mm
Max cutting capacity 35 mm
Severance 40 mm
Air pressure 5 - 6 bar
Air capacity 210 l/min
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 530X255X480 mm
Package (LxWxH) 680X400X515 mm
Weight box/net 33,8 / 32,2 kg
Code 99835017K

Download

Data sheet - PC 103 (1.1 Mb) Updated 21/11/2019
Consumables for plasma torch_PT 100 (576.6 kb) Updated 21/11/2019
Consumables for plasma torch_PTM 100 (557.1 kb) Updated 21/11/2019
Instruction manual (1.4 Mb) Updated 21/11/2019

Features

CE 3ph EN 60974-1 / EN 50192 / EN 60974-10 Air cooling Power generator friendly Line voltage compensation Display 50mm Consumables box Plasma Plasma_Pneumatic Plasma_GridCutting Plasma_CNC Plasma_EasyFit
