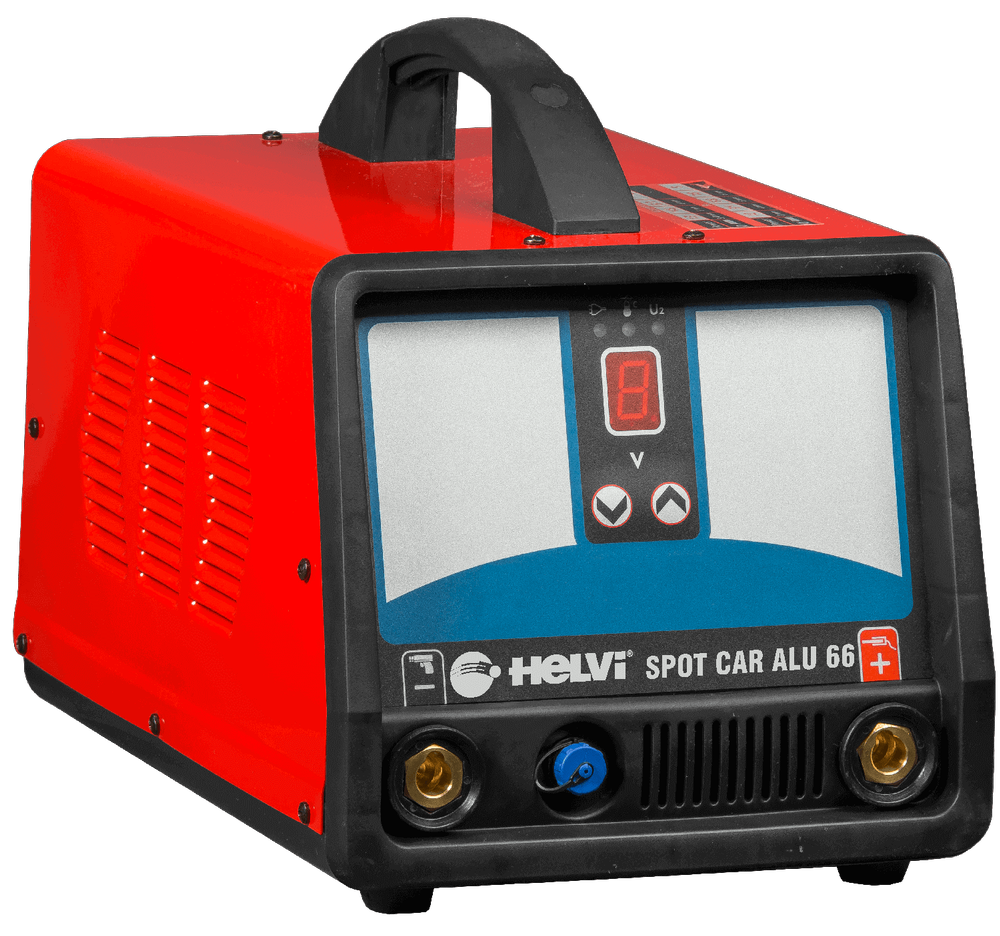

Spot Car Alu is a power source for capacitor discharge welding of studs from M3 to M8. Particularly suitable for quick repairs on aluminum bodywork.Controlled by a microprocessor. It is equipped with an advanced safety system that allows the discharge of the capacitor only when in contact with the piece.
Input voltage (1ph)  |
230V - 50/60Hz |
| Fuse | T6,3 A |
No load output voltage  |
< 20 V |
| C | 66000 uF |
| E | 1500 Joule Max |
| Ts | 1,5 ms |
Ø Al Studs  |
3 - 8 mm |
Machine (LxWxH)  |
250x370x280 mm |
Package (LxWxH)  |
290x560x400 mm |
Weight box/net  |
18,0 / 16,9 kg |
| Code | 99500040 |
