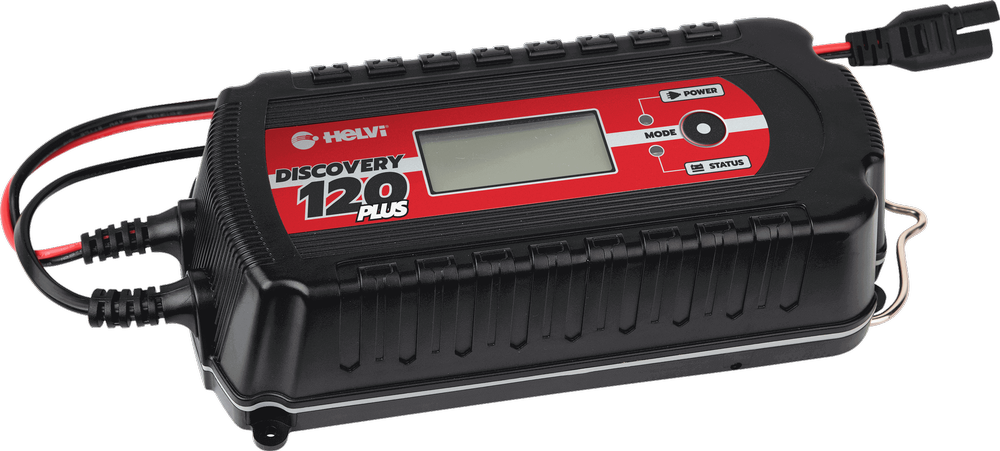

Discovery 120Plus

Description

A new range of completely electronic battery charger with no output voltage spikes, which can damage the vehicles’ circuit boards. Ideal for charging AGM, GEL and lead batteries. The user has the possibility of setting the charge voltage and current to various levels based on the models. Nine-level current steps, ideal for cars, vans and small boats. Desulphation function and lcd display. Voltage selection (12 or 24V), nine-level current steps. Ideal also for Lithium batteries (LiFEPO4).

Technical data
Input voltage (1ph) 230 V - 50/60 Hz
Power 135 W
Battery voltage 12 V 24 V
Charging current 7.6 A 3.8 A
Rated Ref. Cap. 180 Ah 15h
Charging pos. 9
Machine (LxWxH) 235x100x60 mm
Package (LxWxH) 280x175x75 mm
Weight box/net 0,9 / 0,85 Kg
Code 99000083

Download

Data sheet - Discovery 120 Plus (1.7 Mb) Updated 01/09/2020
Instructions Manual - Discovery 120Plus (2.4 Mb) Updated 21/11/2019

Features

CE EAC 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Electronic control Waterproof LCD Display Automotive Chargers Chargers_cars Chargers_Van Chargers_Nautical Chargers_Tractors Chargers_Desulphation Chargers_Recondition Chargers_Low_Temp_Charge Chargers_Fast_Slow_Charge Chargers_Supply Charger_Maintenance Battery_pb Battery_Gel Battery_Ca/Ca Battery_AGM Battery_Start/Stop Battery_LiFePO4
