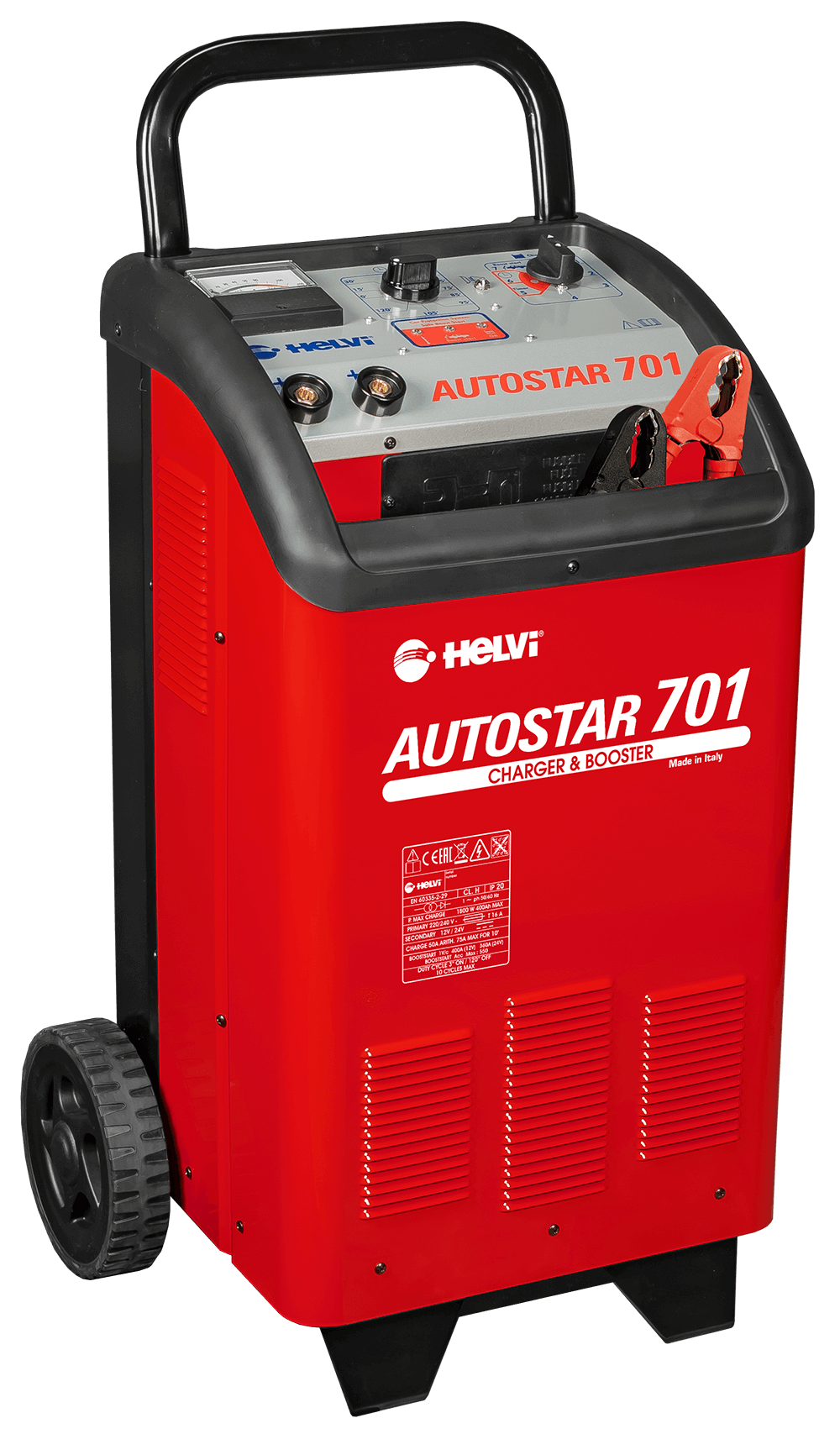

Autostar 701

Description

Battery chargers and starters on wheels. Equipped with charging current control selector and charging current level ammeter. Protected with internal fuse protection against short-circuits or polarity reversal and thermostatic protection against protracted boostings. They are equipped with C.P.S. (car protection system) system in order to activate and disable, in a fully automatic way, the boosting function to protect the on board vehicle’s board.

Technical data
Input voltage (1ph) 230 V - 50/60 Hz
Power 1800 W
Battery voltage 12/24 V
Max charging current 75 A
Charging current 50 A
Max. boosting current 580 Acc
Boosting current 400 A
Rated Ref. Cap. 750 Ah 15h
Charging pos. 6 + Boost
Machine (LxWxH) 320x487x745 mm
Package (LxWxH) 350x420x770 mm
Weight box/net 32,6 / 31,3 Kg
Code 99010037

Download

Data sheet - Autostar 701 (1.3 Mb) Updated 21/11/2019
Spareparts list - Autostar 701 (231.9 kb) Updated 21/11/2019
User manual (1.1 Mb) Updated 21/11/2019
Instruction Manual - Addendum (129.2 kb) Updated 05/10/2020

Features

CE EAC 1ph EN 60335-2-29 / EN 55014-1,2 / EN 61000-3-2,3 Conventional Patented 25mm Automotive Chargers Starters Chargers_cars Chargers_Van Chargers_Nautical Chargers_Tractors Chargers_Heavy equip Chargers_timer Chargers_CPS_Boost Battery_pb
