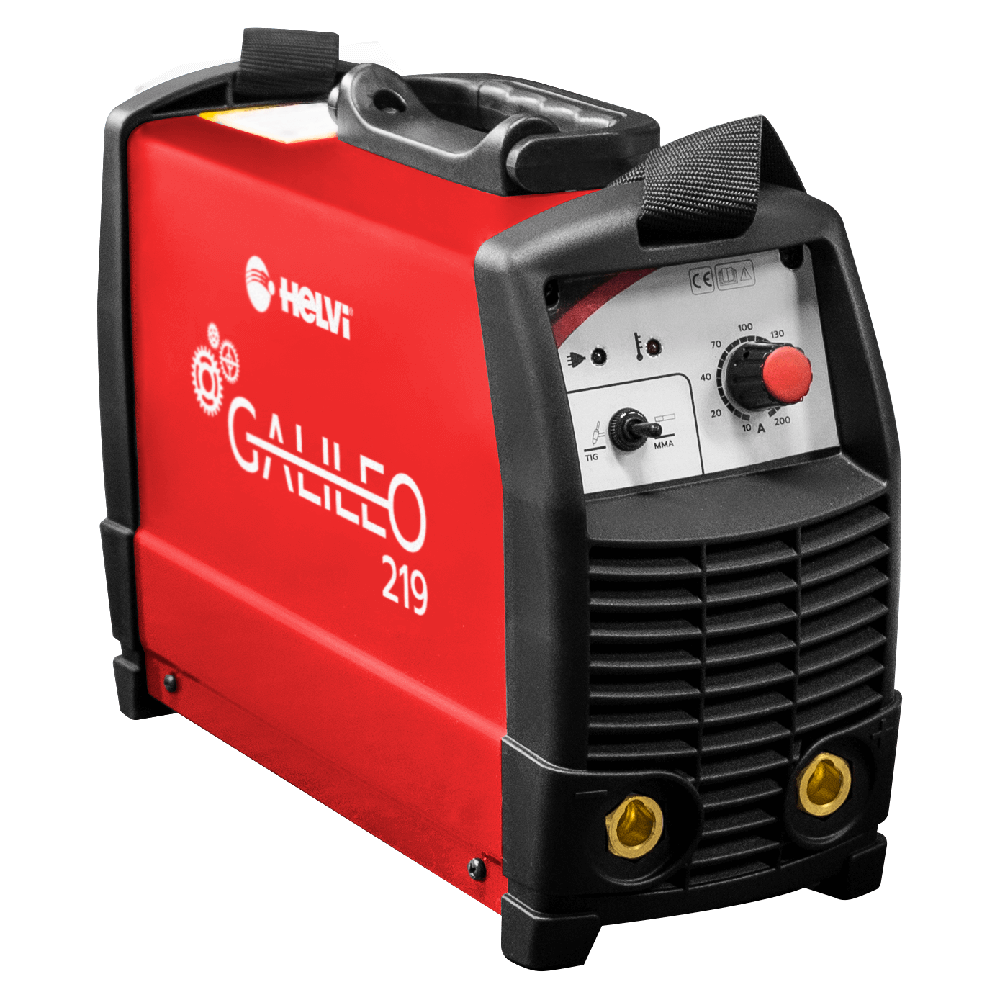

Galileo 219

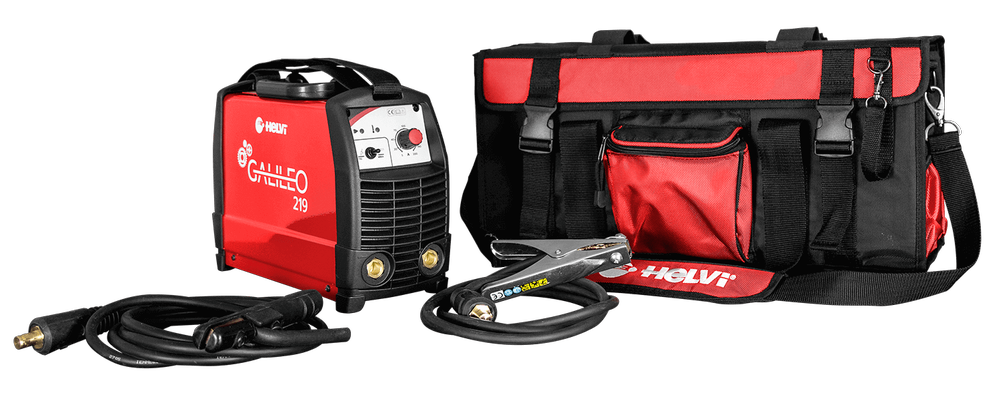

Galileo 219 Helvi Bag KIT

Description

Easy-to-use welding inverters: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control. They can be connected to power sources and long connection lines. They are ideal for maintenance jobs and workshops applications.

Technical data
Input voltage (1ph) 230V - 50/60Hz
Power 60% 6 KW
No load output voltage 48 V
Amp. min-max  10 ÷ 200 A
Duty Cycle 40° 200A @ 60%
155A @ 100%
Ø E 1,6 ÷ 5 mm
Electrode type 6013 - 7018
Insulation H
Protec. Degree IP23S
Machine (LxWxH) 140x360x255 mm
Package (LxWxH) 175x510x290 mm
Weight box/net 7,4 / 6,8 Kg
Code 99806009

Download

Data Sheet (236.8 kb) Updated 31/08/2024
Instruction Manual (2.2 Mb) Updated 01/09/2020
Eco Design (296.5 kb) Updated 28/12/2020
Spare parts list - Machine only (242.2 kb) Updated 16/02/2022

Features

CE EAC EcoDesign EN 60974-1 / EN 60974-10 Air cooling VRD Power generator friendly Power generator friendly 12 KVA Line voltage compensation 50mm MMA MMA_ArcForce MMA_HotStart MMA_AntiSticking TIG TIG_LiftArc
