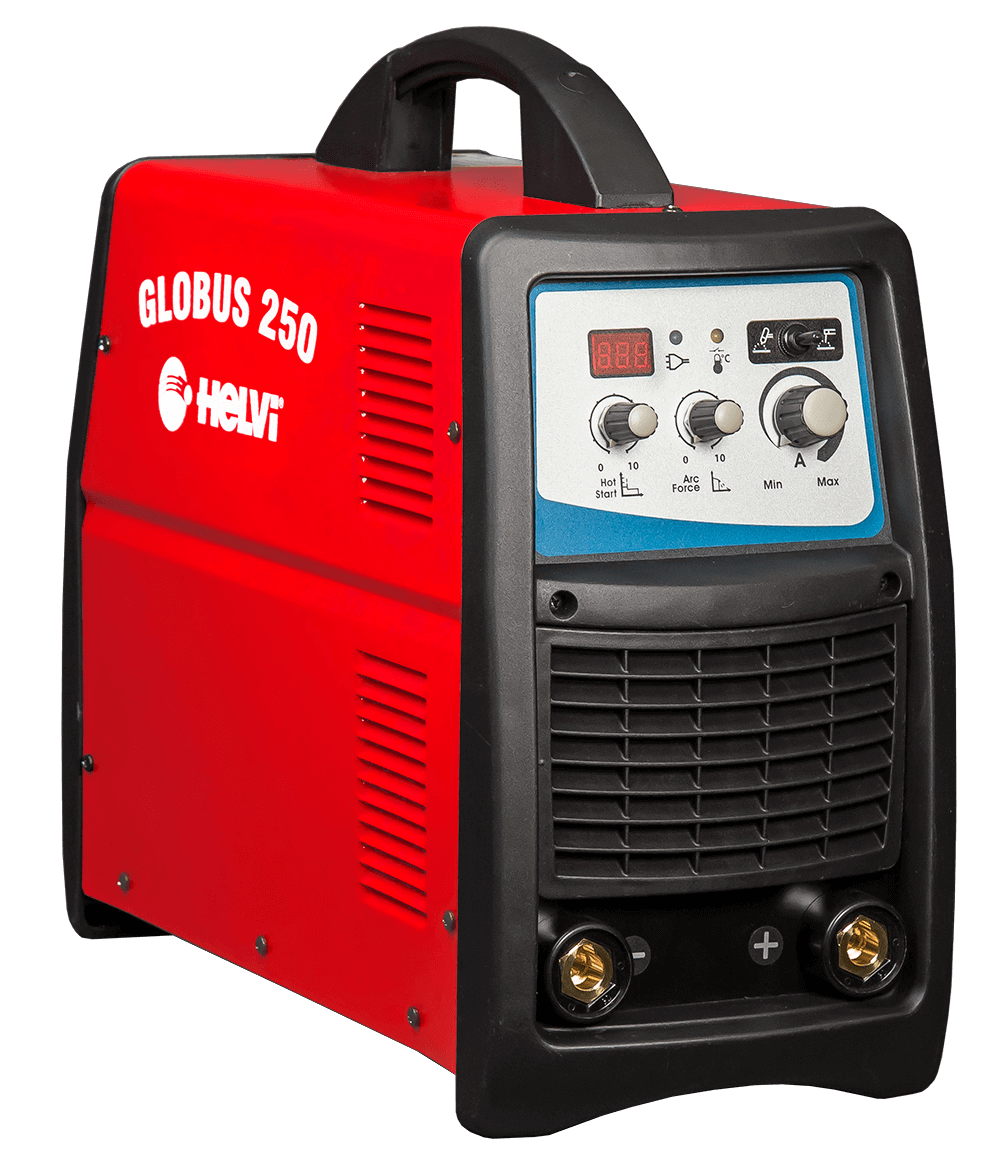

3ph welding inverter designed to meet the requirements of even the most demanding user with a wide current range and a good duty cycle. Excellent welding features guaranteed with all types of commercial electrodes thanks to the possibility to setup Hot Start and Arc Force parameters. Equipped with special overvoltage, over temperature and antisticking functions, which protect generators even in the harshest working conditions. The TIG/MMA button also enables use for TIG welding with Lift Arc. Equipped with digital display to show welding current.
Input voltage (3ph)  |
400V - 50/60Hz | |
| MMA | TIG | |
|---|---|---|
| Power 60% | 7 KW | 4,5 KW |
No load output voltage  |
40 V | 40 V |
| Amp. min-max | 10 ÷ 250 A | 10 ÷ 250 A |
| Duty Cycle 40° | 250A @ 40% 210A @ 60% 180A @ 100% |
250A @ 40% 210A @ 60% 180A @ 100% |
| Ø E | 1,6 ÷ 5 mm | - |
| Electrode type | 6013 - 7018 | - |
| Insulation | H | |
| Protec. Degree | IP22S | |
Machine (LxWxH)  |
420x200x380 mm | |
Package (LxWxH)  |
565x300x410 mm | |
Weight box/net  |
12,7 / 11,6 Kg | |
| Code | 99815037 | |
