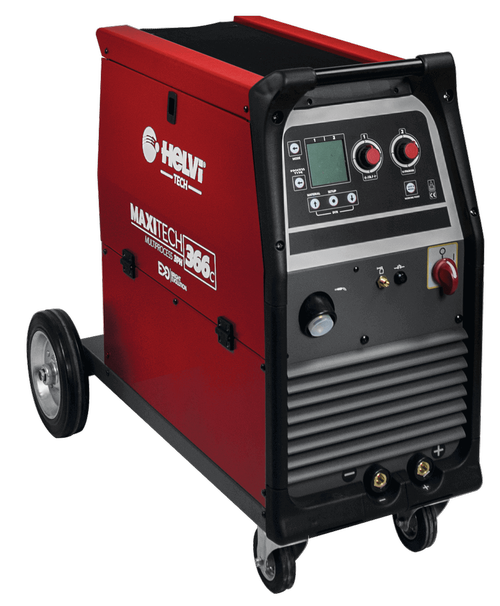

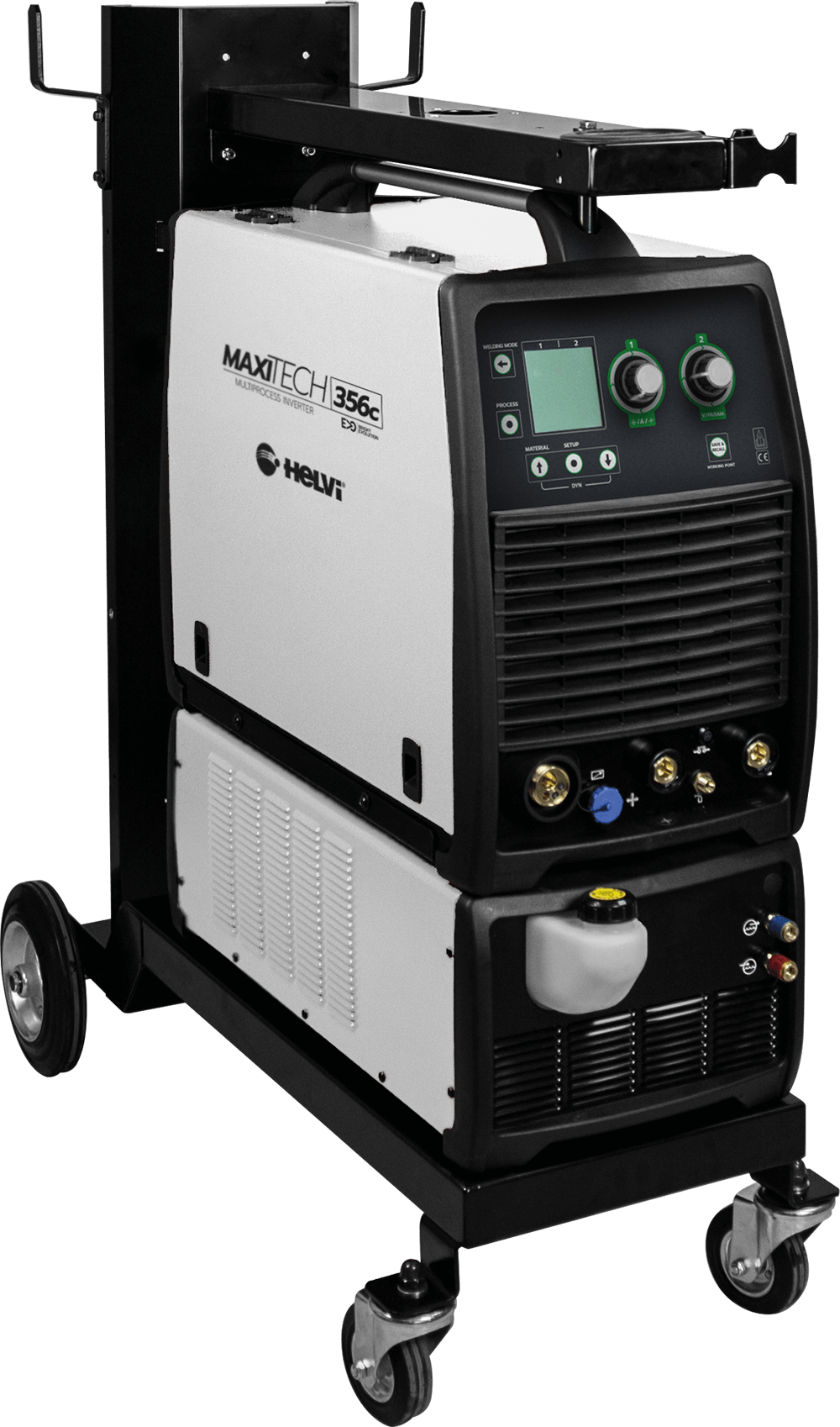

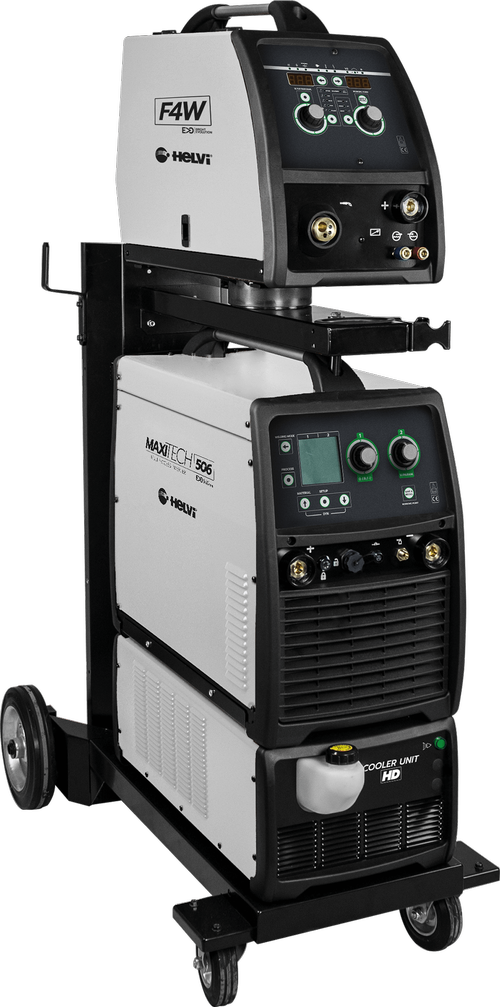

Maxitech EVO 356C

Description

Microprocessor-controlled, multi-process welding inverter compact or with separate wire feeder suitable for MIG/MAG (Standard: manual, synergic. Optional: pulse, double-pulse and root welding), TIG-DC (continuous and pulse) and MMA welding. The large 3.3” display shows all the welding parameters, and makes their setting easy and intuitive. In synergic/pulsed MIG/MAG welding, the microprocessor ensures easy and quick setting of the programs thus always guaranteeing optimal arc stability and high welding quality. MIG-MAG features: continuous - pre-set synergic curves – storage of custom welding settings - 2T/4T, spot function selection - pre-post gas time regulation – electronic reactance, soft start, burn back time, hot start, slope down, crater filler. TIG DC features: lift arc - continuous and pulse welding - 2T/4T - Current, final current up/down slope regulation. MMA features – antisticking - adjustable hot start and arc force. Ideal for professional use, medium-light workshop, metallic furnishings fabrication, industrial and automotive bodyshop, shipbuilding and piping. Thanks to an excellent arc control you can obtain high quality deposition. Possibility to expand the power source with optional function: single pulse, double pulse, root welding. You can also install optional interface to use Spool-gun or Push-pull torch, with analog or digital control. The user can save and recall more then 200 working point and to store them in a customized JOB LIST. Easy to update thanks to USB interface.

Technical data
Input voltage (3ph) 400V 50/60Hz
Power 60% 12 KVA
  MIG MMA TIG
No load output voltage 60 V 60 V 12 V
Amp. min-max  30 ÷ 350 A 10 ÷ 350 A 5 ÷ 350 A
Duty Cycle 40° 350A @ 50%
280A @ 100%
350A @ 50%
280A @ 100%
350A @ 50%
280A @ 100%
Insulation H
Protec. Degree IP23S
Dimens. (LxWxH) Power source 320x650x500 mm
Trolley 1035x530x300 mm
Weight box/net 69 / 65,5 Kg
Code 99825022K

Download

Instructions Manual - Maxitech 356C EVO (5.2 Mb) Updated 15/10/2020
Data Sheet (1.1 Mb) Updated 25/09/2024
Brochure Maxitech EVO (1.1 Mb) Updated 06/05/2022
Eco Design (296.5 kb) Updated 28/12/2020
Parts List (780.4 kb) Updated 25/01/2022
Wirefeeder parts list (178.2 kb) Updated 07/02/2022

Features

CE EAC EcoDesign EN 60974-1 / EN 60974-10 External water cooling VRD Power generator friendly CC/CV LCD Display 50mm USB Save&Recall Maxitech download_DataLog MIG MIG_Metallic wire feeder 4 rolls MIG_WireSpool_5-15kg MMA MMA_AdjArcForce MMA_AdjHotStart MMA_AntiSticking MMA_Rutile/Basic TIG TIG_LiftArc TIG_Pulse Tig_Full_Cycle

Software upgrades

Analog/Digital remote control

Analog/Digital remote control

cod. 04600492

Single Pulse version

Single Pulse version

cod. 04600451

Sppol-gun + Push pull + Analog/Digital remote control Sppol-gun + Push pull + Analog/Digital remote control Sppol-gun + Push pull + Analog/Digital remote control

Sppol-gun + Push pull + Analog/Digital remote control

cod. 04600493

Single/Double pulse version Single/Double pulse version

Single/Double pulse version

cod. 04600452

Root welding

Root welding

cod. 04600453

Single/Double pulse version + Root welding Single/Double pulse version + Root welding Single/Double pulse version + Root welding

Single/Double pulse version + Root welding

cod. 04600454

Spool-gun & Push pull interface Spool-gun & Push pull interface

Spool-gun & Push pull interface

cod. 04600463

Extra accessories

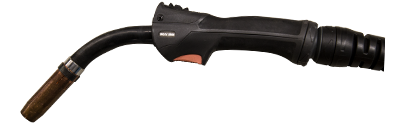

MIG torch TBi 360 - 4m - Blue - Euro connection

cod. 23000431

MIG torch TBi 511 - 4m - Blue - Water cooled - Euro connection

cod. 23000444

MIG torch · M3X 500 SC · 4 mt · H₂O

cod. 23000460

MIG torch · M3X 500 SC · 3 mt · H₂O

cod. 23000462

MIG torch · PARKER MM 555W · Up/Down · 3 mt · H₂O

cod. 23000471

MIG torch · PARKER MM 555W · Up/Down · 4 mt · H₂O

cod. 23000472

MIG torch · PARKER MM 555W · Up/Down · 5 mt · H₂O

cod. 23000473

ExperTig 26 · 4 mt · conn. 50 mm² · 3 Pin · Consumables KIT Ø 2,4 mm · Air cooled

cod. 23020157

ExperTig 18 R.A. · 4 mt · conn. 50 mm² · 3 Pin · Consumables KIT Ø 2,4 mm · Water cooled

cod. 23020161

Welding cable with electrode holder - 5m - 50mm2 - 500 Amp - 50mm2 connector

cod. 43205037K

Ground cable with clamp - 3m - 50mm2 - 500 Amp - 50mm2 connector

cod. 43210076K

Ground cable with clamp - 3m - 70mm2 - 500 Amp - 70mm2 connector

cod. 43210115K

Ground cable with C-clamp · 70 mm² · 5 mt · conn. 95 mm²

cod. 43210247K

Roll • Ø 30 mm • 0,6 - 0,8 mm

cod. 33805003

Roll • Ø 30 mm • 1,0 - 1,2 mm

cod. 33805005

Roll • Ø 30 mm • 0,8 - 1,0 mm • for Aluminium

cod. 33805104

Roll • Ø 30 mm • 1,0 - 1,2 mm • for Aluminium

cod. 33805115

Roll • Ø 30 mm • 1,2 - 1,6 mm

cod. 33805058

Roll • Ø 30 mm • 0,8 - 1,0 mm

cod. 33805101

Roll • Ø 30 mm • 1,0 - 1,2 mm Knurled Groove • for Flux Core NoGas

cod. 33805067

Roll • Ø 30 mm • 0,6 - 0,9 mm • for Flux Core NoGas

cod. 33805071

Cooler unit XL · 400V

cod. 99490024KA

Cooling liquid - 5 kg tank

cod. 10910035

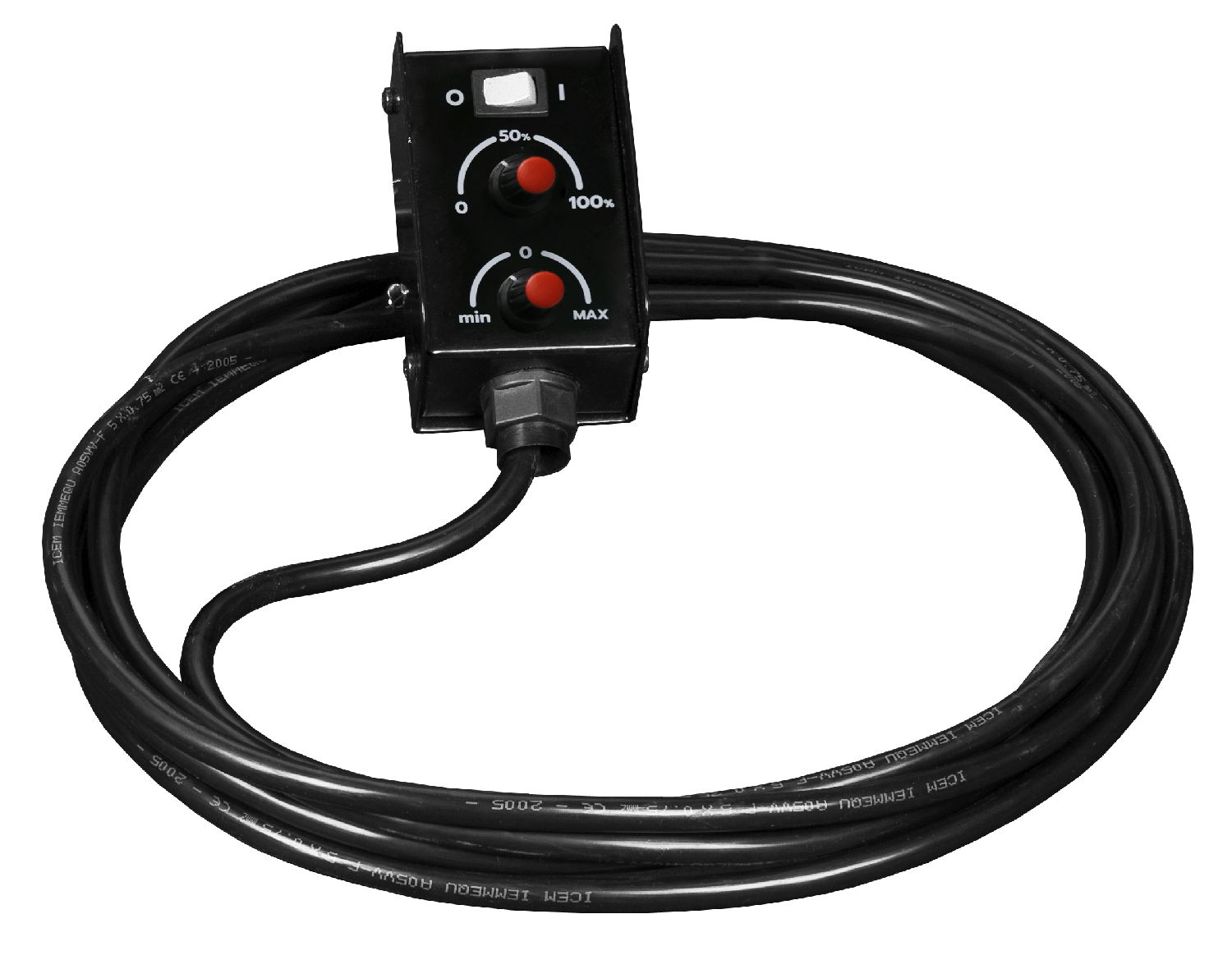

Manual remote control - 10m - 12 pin - For Maxitech range

cod. 99810024

Trolley ECO

cod. 99900187

Trolley HD

cod. 99900201

Dust Filter

cod. 22800120
