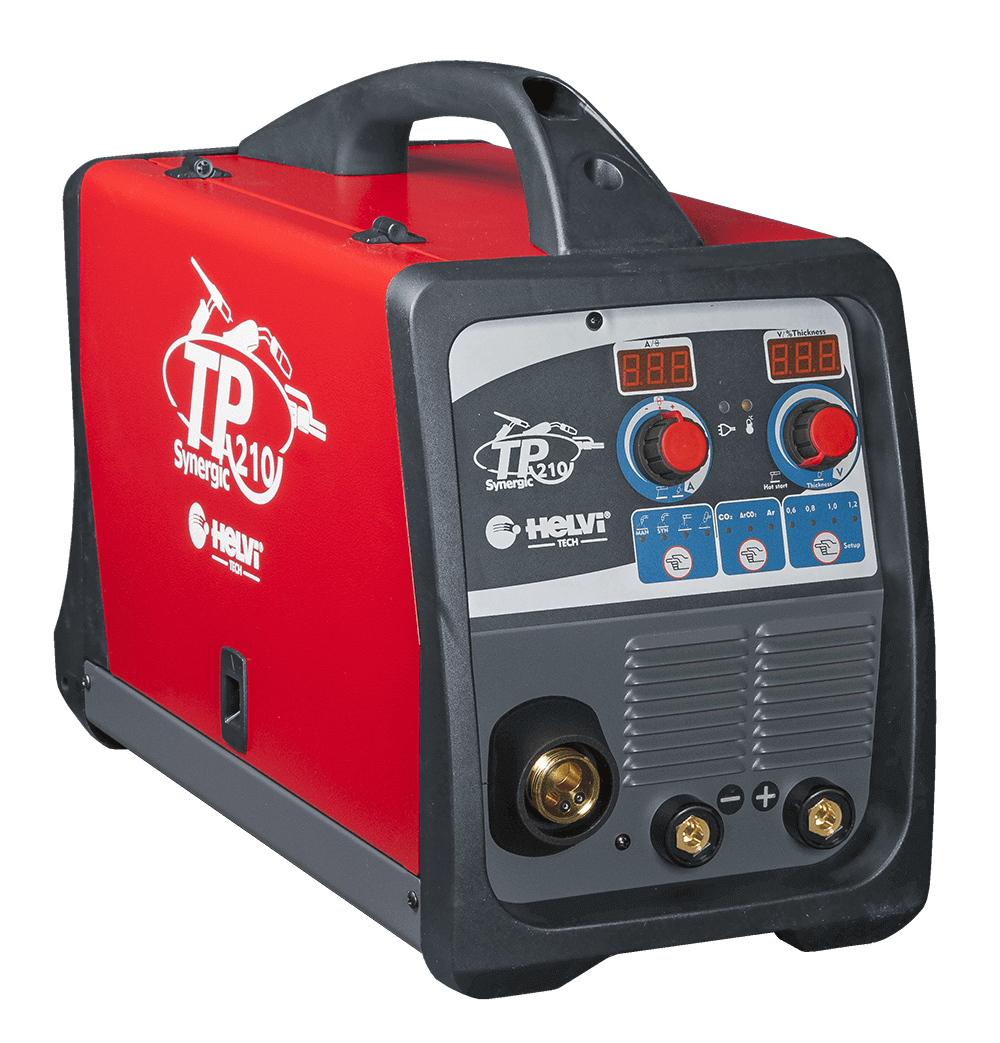

TP 210

Description

Microprocessor-controlled welding inverter suitable for DC controlled MIG/MAG, TIG and STICK WELDING, which guarantees excellent stability of the welding arc and no welding spatters. In STICK mode, the microprocessor controls the Hot Start, Arc Force and Anti-sticking functions. In TIG mode, it controls the Lift Arc function and in MIG mode it allows either manual or fully synergic welding. Regulation of the slope-up motor, automatic soft start wire feed control of the arc. Its simplicity and versatility make it perfect for use in body shops, workshops and for all maintenance tasks. All of the functions can be easily selected on the front panel. Digital displays show the welding voltage and current and all the parameters selected. Model lightweight and compact and is designed to accept wire reels with diameter of 200 mm.

Technical data
Input voltage (1ph) 230V 50/60Hz
Power 30% 5,5 KVA
  MMA TIG MIG
No load output voltage 65 V 65 V 35 V
Amp. min-max  5 ÷ 200 A 5 ÷ 200 A 20 ÷ 200 A
Amp. 60974-1 35%  200 A
100% 120 A
35%  200 A
100% 120 A
35%   200 A
100% 140 A
Aluminium - - Ø  0,8 ÷ 1,2 mm
Steel - - Ø  0,6 ÷ 1,2 mm
Flux core - - Ø  0,8 ÷ 1,2 mm
Stainless Steel - - Ø  0,8 ÷ 1,2 mm
Brazing - - Ø  0,8 ÷ 1,2 mm
Ø E 1,6 ÷ 5 mm - -
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 500x280x420 mm
Package (LxWxH) 685x295x395 mm
Weight box/net 23 / 21 Kg
Code 99820036K

Download

Data sheet - TP 210 (2.4 Mb) Updated 21/11/2019
Spareparts list - TP 210 (35.0 kb) Updated 21/11/2019
User manual (2.3 Mb) Updated 21/11/2019

Features

CE 1ph EN 60974-1 / EN 60974-10 Fan on demand VRD Power generator friendly Line voltage compensation Electronic control Display 50mm MMA MMA_HotStart MMA_AntiSticking MMA_Rutile/Basic TIG TIG_LiftArc MIG MIG_2T/4T MIG_Synergic regulation MIG_Metallic wire feeder 2 rolls MIG_WireSpool_1-5Kg MIG_Gas/No Gas

Contact us

At your service for everything!


Similar products

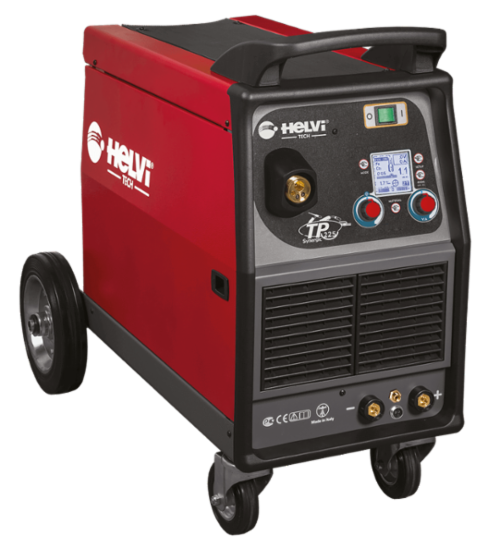

TP 225
