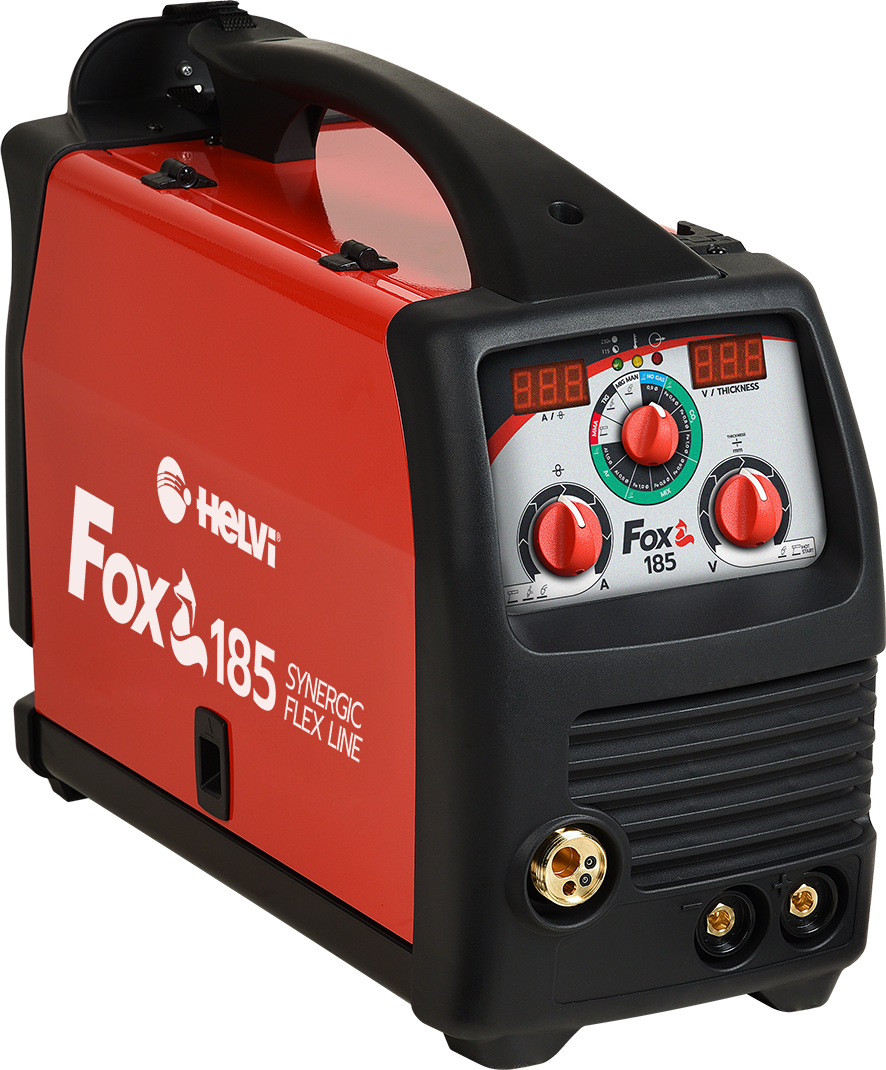

MAIN FEATURES: - Inverter Technology - Automatic line voltage compensation - Light and versatile - Patent usefull torch storage and cable wrapper - Easy to set thanks to the printed welding parameters - Excellent results even for novice users - Power generator friendly. Fox 185 is the star model of the range! It includes all the features of the range, plus it has others improvements which makes it a unique product on the product segment. Fast and easy setting mode thanks to the NEW synergic function. The user can in fact select the thickness to weld. Moreover, the model has the Flex-line technology which garantuee a high power factor and an high energy saving close to 35%(compare to a traditional inverter machine). It has also 2 digital display that make it easier to set and read the welding parameters.
Input voltage (1ph)  |
115V - 50/60Hz | 230V - 50/60Hz | ||||
| Power 60% | 1,9 KVA | 2,8 KVA | ||||
| MIG | MMA | TIG | MIG | MMA | TIG | |
|---|---|---|---|---|---|---|
No load output voltage  |
60 V | 80 V | 9,5 V | 60 V | 80 V | 9,5 V |
| Amp. min-max | 25 ÷ 120 A | 20 ÷ 100 A | 5 ÷ 110 A | 25 ÷ 170 A | 20 ÷ 170 A | 5 ÷ 170 A |
| Duty Cycle 40° | 120A @ 40% 100A @ 60% 75A @ 100% |
100A 40% 85A @ 60% 65A @ 100% |
110A @ 40% 90A @ 60% 70A @ 100% |
170A @ 25% 110A @ 60% 85A @ 100% |
170A @ 25% 110A @ 60% 85A @ 100% |
170A @ 25% 110A @ 60% 85A @ 100% |
| Steel | 0,6 ÷ 0,8 Ø mm | |||||
| Stainless steel | 0,8 Ø mm | |||||
| Aluminium | 0,8 ÷ 1,0 Ø mm | |||||
| Flux core | 0,9 Ø mm | |||||
| CuSi3 | 0,8 Ø mm | |||||
| E Ø | 1,6 ÷ 3,25 Ø mm | |||||
| Electrode type | 6013 - 7018 - CrNi | |||||
| Insulation | H | |||||
| Protec. Degree | IP22S | |||||
Machine (LxWxH)  |
220x480x385 mm | |||||
Package (LxWxH)  |
260x590x435 mm | |||||
Weight box/net  |
16 / 12 Kg | |||||
| Code | 99820039A | |||||
