Product line

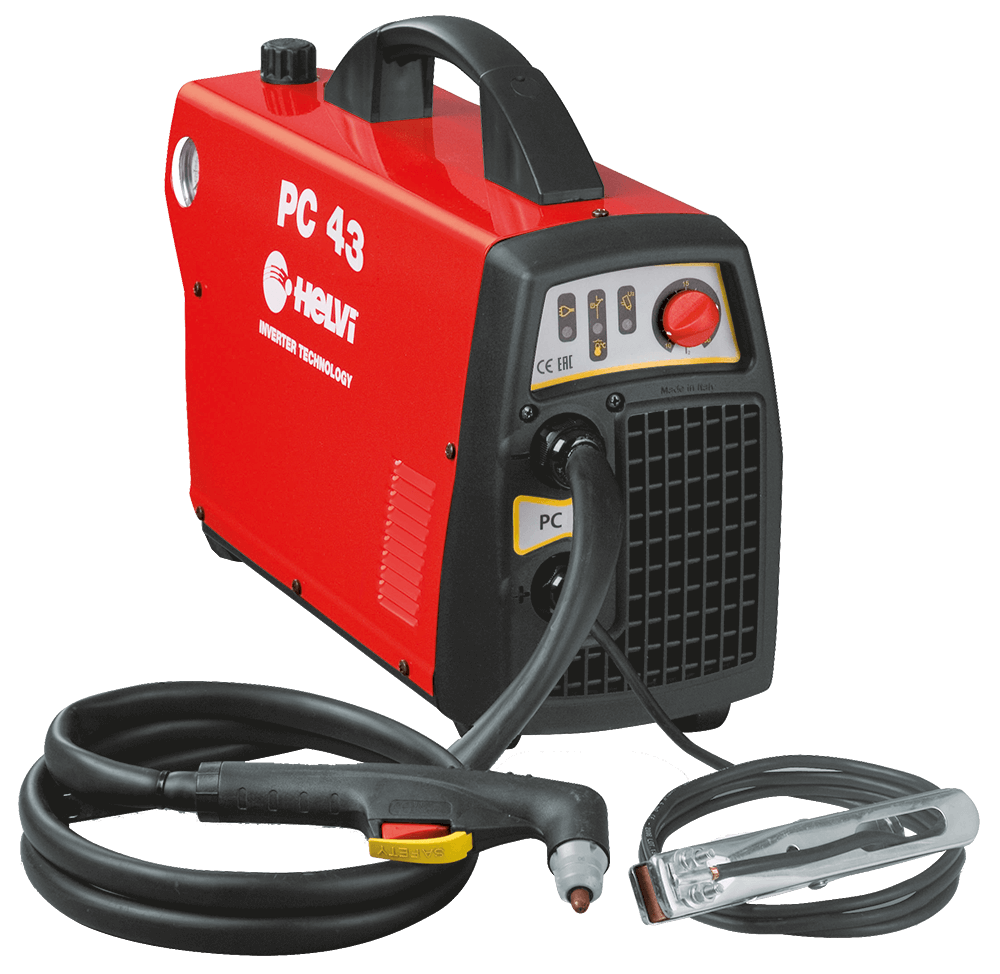

The Plasma, based on Inverter technology, guarantees accurate and clean plasma cut up to 15 mm thickness. Easy to handle and operate, this system is suitable for cutting thin materials at high speed. The front panel is provided with clear and simple graphics for the adjustment of the cutting current and to indicate the intervention of any of the internal safety devices. Extra operator protection is provided by a special Start system. It is well suited for auto body repair shops, air conditioning systems and general plate working.

Technical data
Plasma torch PT40
Input voltage (1ph) 230V - 50/60Hz
Power 60% 3,3 KVA Max
No load output voltage 350 V Max
Range 10 ÷ 40 A
Cutting current 40A @ 20%
25A @ 60%
20A @ 100%
Max cutting capacity 15 mm
Clean cutting capacity 25cm/min 13 mm
Air pressure 4 - 5,5 bar
Air capacity 100 l/min
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 155x430x320 mm
Package (LxWxH) 260x560x355 mm
Weight box/net 11,8 / 10,6 kg
Code 99830019


Data sheet - Pc 43 (1.1 Mb) Updated 21/11/2019
Spareparts list - Pc 43 (124.6 kb) Updated 21/11/2019
User manual (2.0 Mb) Updated 21/11/2019
Eco Design (296.4 kb) Updated 28/12/2020


CE EAC 1ph EN 60974-1 / EN 50192 / EN 60974-10 Air cooling Power generator friendly Power generator friendly 6,6 KVA Line voltage compensation Electronic control Automotive Plasma Plasma_Pneumatic
