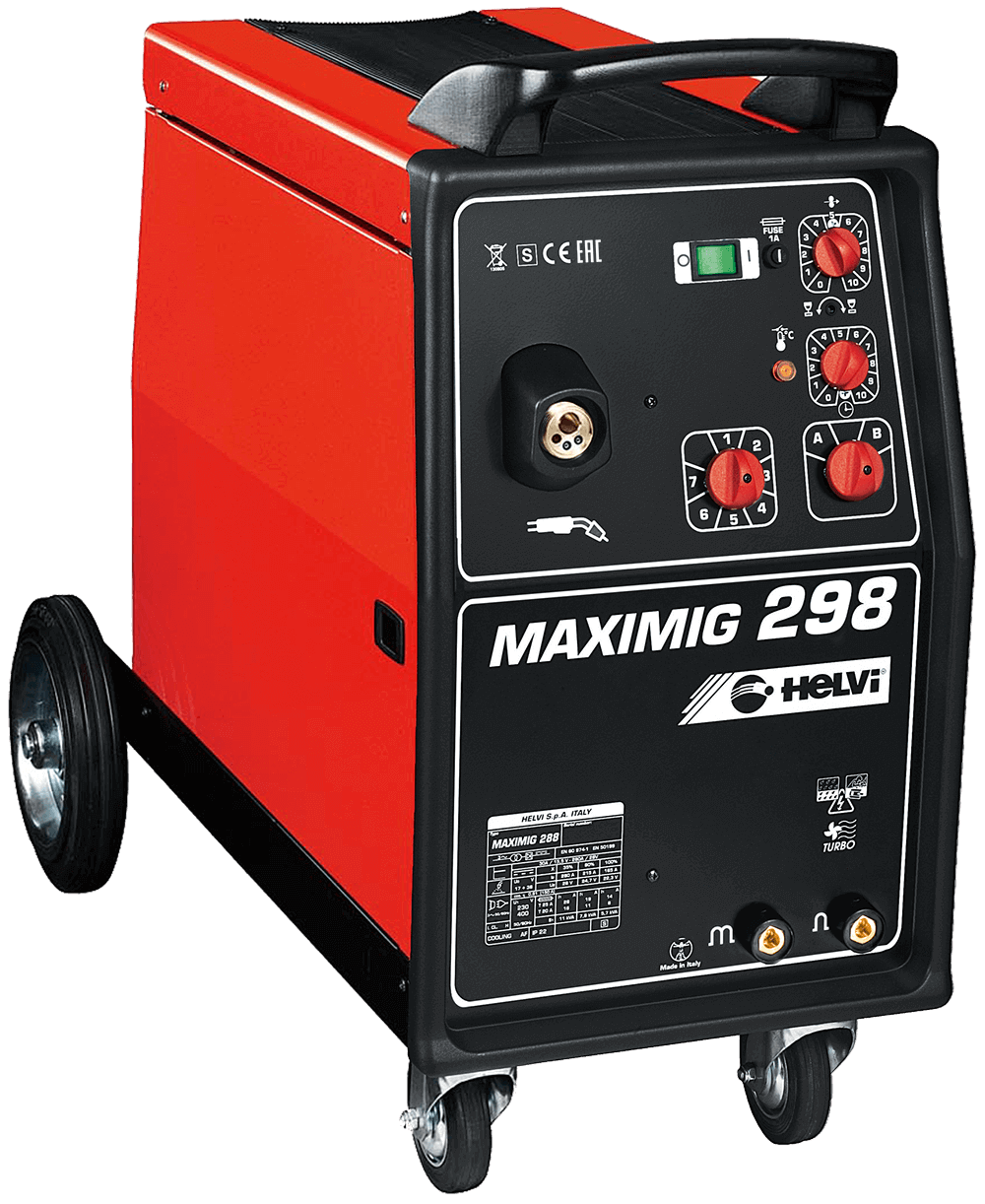

Maximig 298

Description

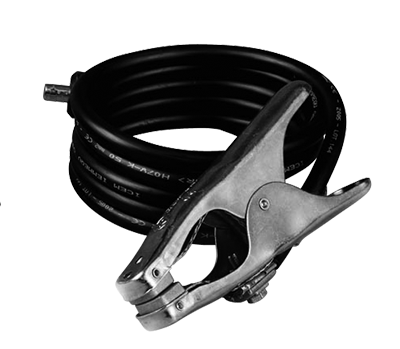

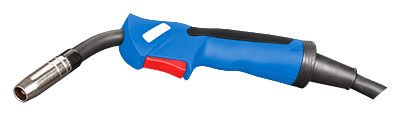

Three-phase MIG welding units on wheels. Equipped with Euro connection torch, pressure regulator, gas hose, earth cable and clamp. These units are equipped with timer for spot welding. The reel holder accepts spools from 5 to 15 kg. Suitable for professional and industrial use.

Technical data
Input voltage (3ph) 230/400V - 50/60Hz
Power 60% 8,5 KW
No load output voltage 18 ÷ 45 V
Amp. min-max  30 ÷ 300 A
Duty Cycle 40° 290A @ 35%
225A @ 60%
Adjust. Pos. 14
Steel 0,6 ÷ 1,2 Ø mm
Stainless steel 0,8 ÷ 1,0 Ø mm
Aluminium 0,8 ÷ 1,0 Ø mm
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 470x880x750 mm
Package (LxWxH) 390x940x610 mm
Weight box/net 94 / 90,6 Kg
Code 99410073

Download

Data sheet - Maximig 298 (269.0 kb) Updated 01/09/2020
Spareparts list - Maximig 298 (272.1 kb) Updated 21/11/2019
User manual IT - GB - ES - PT - RO - RU (5.5 Mb) Updated 21/11/2019
User manual GB - D - FR (6.1 Mb) Updated 21/11/2019
Eco Design (296.5 kb) Updated 28/12/2020
Wirefeeder parts list (151.0 kb) Updated 07/02/2022

Features

CE 3ph EN 60974-1 / EN 60974-10 Air cooling Conventional DC 50mm MIG MIG_Metallic wire feeder 2 rolls MIG_WireSpool_5-15kg MIG_RollsGroove_10-12
