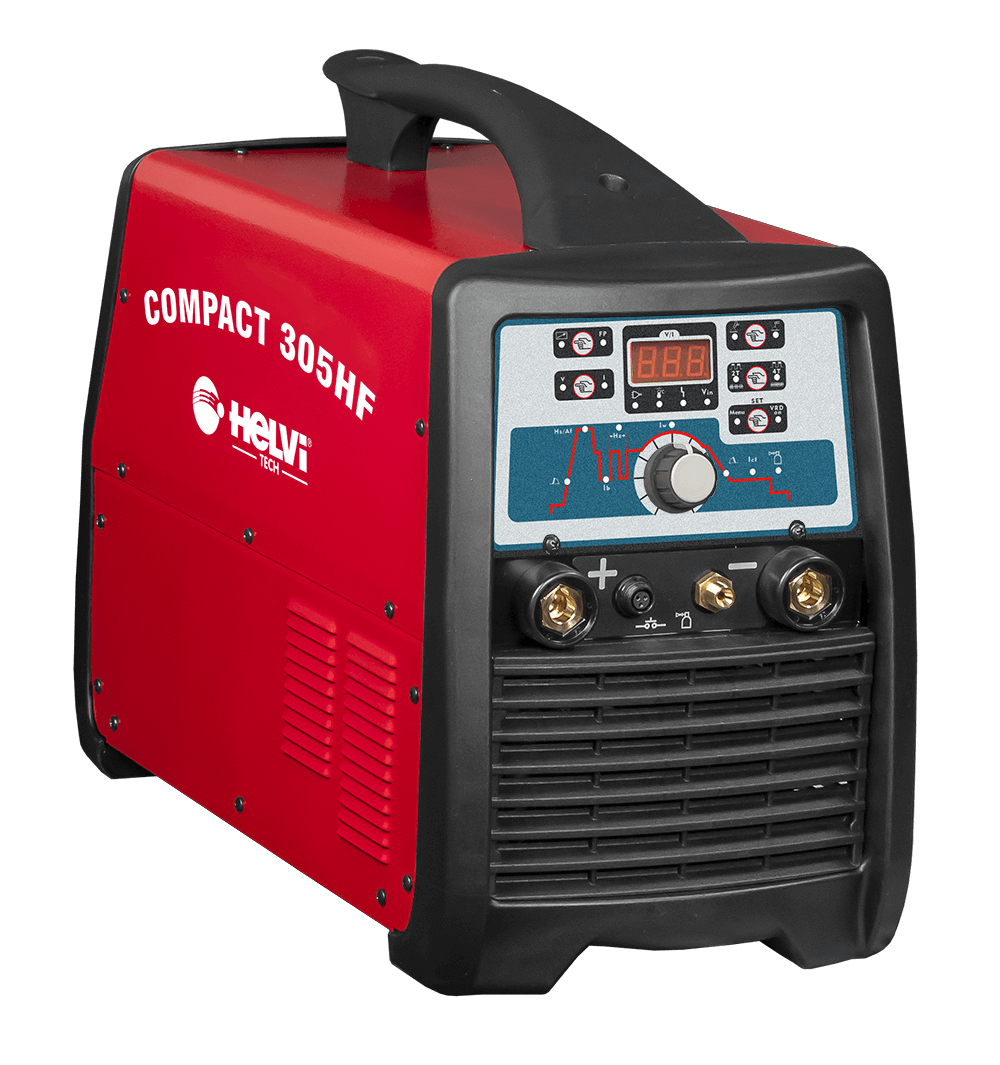

Welding inverters designed to work with unstable supply voltages caused by the use of power units and long connection lines. Microprocessor controlled, they provide excellent MMA welding performance with most types of commercial electrodes and TIG welding with HF or LIFT arc ignition. MMA: arc force and hot start adjustable for COMPACT 305 HF. TIG values: 2-stroke, 4-stroke, 2-stroke pulsated or 4-stroke pulsated. COMPACT 305HF model is fitted with a digital instrument panel which dipslays both welding current and voltage, all welding parameters are adjustable from the front panel. The unit is fitted with VRD function, which allows the user to work safely even in hazard environments. The VRD function can be switched on or off as required. It can also be used with a remote control or foot pedal control.
Input voltage (3ph)  |
400V - 50/60Hz | |
| TIG | MMA | |
|---|---|---|
| Power 60% | 7 KVA | 10 KVA |
No load output voltage  |
10 V | 50 V |
| Amp. min-max | 5 ÷ 300 A | 5 ÷ 270 A |
| Amp. 60974-1 | 50% 300 A 100% 210 A |
60% 270 A 100% 200 A |
| Ø E | 1,6 ÷ 5 mm | |
| Insulation | H | |
| Protec. Degree | IP22S | |
Machine (LxWxH)  |
545x255x415 mm | |
Package (LxWxH)  |
665x305x460 mm | |
Weight box/net  |
24 / 23 Kg | |
| Code | 99815036 | |
cod. 23020157
cod. 23020161
cod. 99490022K
cod. 99810012
cod. 99810013
cod. 99810016
cod. 99900009
cod. 99900011
cod. 99900171A
