cod. 99900321

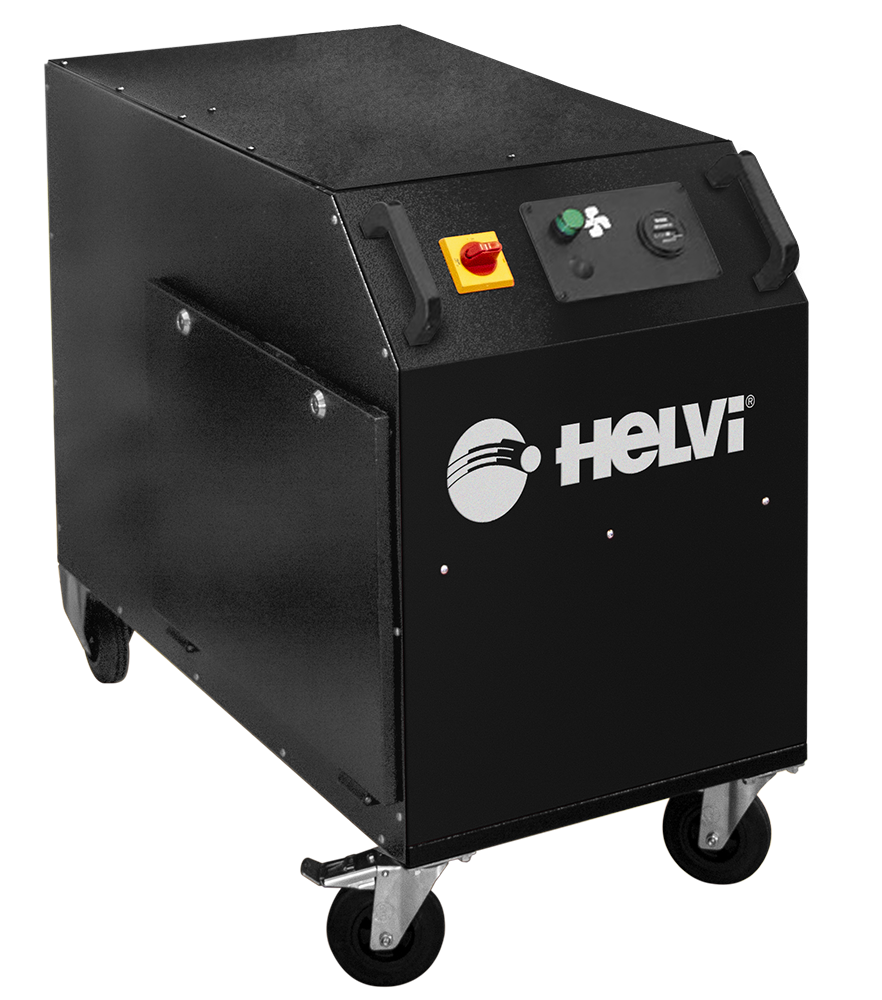

Professional mobile air cleaner with ARMOFLEX arm: with HEPA filter (for light-medium duty cycles)
Applications: MIG/MAG • MIG MAG PULSED • MMA WELDING
MAIN FEATURES
Welding fume extraction with medium-low concentrations of pollutants in closed nvironments or confined spaces being difficult to reach with normal fume extraction systems. 220/1/50 single-phase extraction fan with brushed motor. Now fitted with a brand new digital control panel which provide all functioning info to the user and signals any malfunction and filter clogging.
STRUCTURE
Made of powder-coated steel sheet, complete with pivoting custors and handles. High efficiency centrifugal electric fan placed downstream of the filtering section in a special sound-proof housing. 3 meters articulated arm (Ø 160 mm) with rigid pipe, complete with extractor hood equipped with multi-directional damper and joint.
FILTERING SECTION
Composed of a metallic antispark pre-filter, a pre-treated paper filter and an activated carbon filter.
| Input Voltage (1ph) |
230V 50Hz |
| Motor Power |
1,1 KW |
| Airflow |
2500 m³/h |
| Extraction capacity |
1400 m³/h |
| Filter type |
HEPA Filter (Light-Medium Duty Cycle) |
| Filtration efficiency |
99% |
| Noise level |
74 dBA |
| Dimens. (LxWxH) |
1100x523x850 mm |
| Box (LxWxH) |
1150x550x1050 mm |
| Weight box/net |
80 / 70 Kg |
