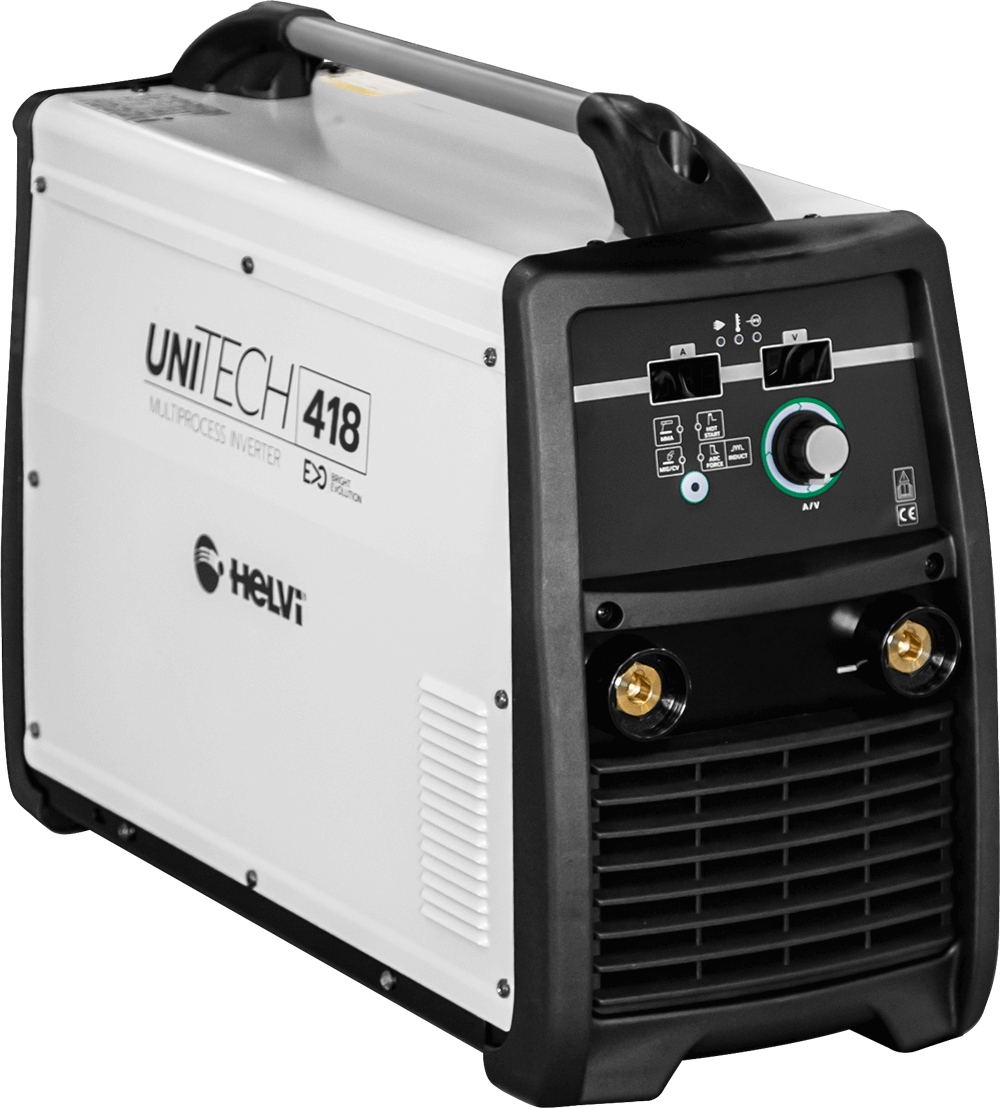

UNITECH MMA EVO 418

UNITECH MMA EVO 558
UNITECH MMA EVO 368

Beschreibung

Share
Technischen Daten
Input voltage (3ph) 400V - 50/60Hz
  MMA
Power 60% 12,5 KVA
No load output voltage 60 V
Amp. min-max  20 ÷ 350 A
Duty Cycle 40° 350A @ 60%
310A @ 100%
Insulation H
Protec. Degree IP23S
Machine (LxWxH) 250x610x440 mm
Weight box/net 31,8 / 30,16 kg
Code 99850009A

Downloaden

Technische Daten (138.1 kb) Aktualisiert am 01/09/2024
Bedienungsanleitung (7.6 Mb) Aktualisiert am 24/09/2024

Eigenschaften

CE EAC EcoDesign EN 60974-1 / EN 60974-10 Fan on demand VRD Power generator friendly Line voltage compensation Flex Line CC/CV Display 50mm Remote control - 12 pin MMA MMA_AdjArcForce MMA_AdjHotStart MMA_AntiSticking MMA_Rutile/Basic TIG TIG_LiftArc

Applikationen

Light industry| Farming| Service/Maintenance| Heavy industry| Shipyards

Zusätzliches Zubehör

ExperTig 26 · 4 mt · conn. 50 mm² · 12 Pin · Consumables KIT Ø 2,4 mm · Air cooled

cod. 23020176

Cavo di saldatura con pinza portaelettrodo · 70 mm² · 5m · conn. 70 mm²

cod. 43205052K

Ground cable with clamp - 3m - 50mm2 - 500 Amp - 50mm2 connector

cod. 43210076K

Ground cable with clamp - 3m - 70mm2 - 500 Amp - 70mm2 connector

cod. 43210115K

Cavo di massa con morsetto a C · 70 mm² · 5 mt · conn. 95 mm²

cod. 43210247K

Arc welding kit - 500 Amp - 50mm2 - 5+3 m - dinse 70mm2

cod. 99900022

Arc welding kit - 600 Amp - 70mm2 - 5 + 3 m - dinse 70mm2

cod. 99900063

Trolley

cod. 99900171A

Trolley HD AIR

cod. 99900258

Trolley · 4 ruote + ripiani · HD

cod. 99900258A
