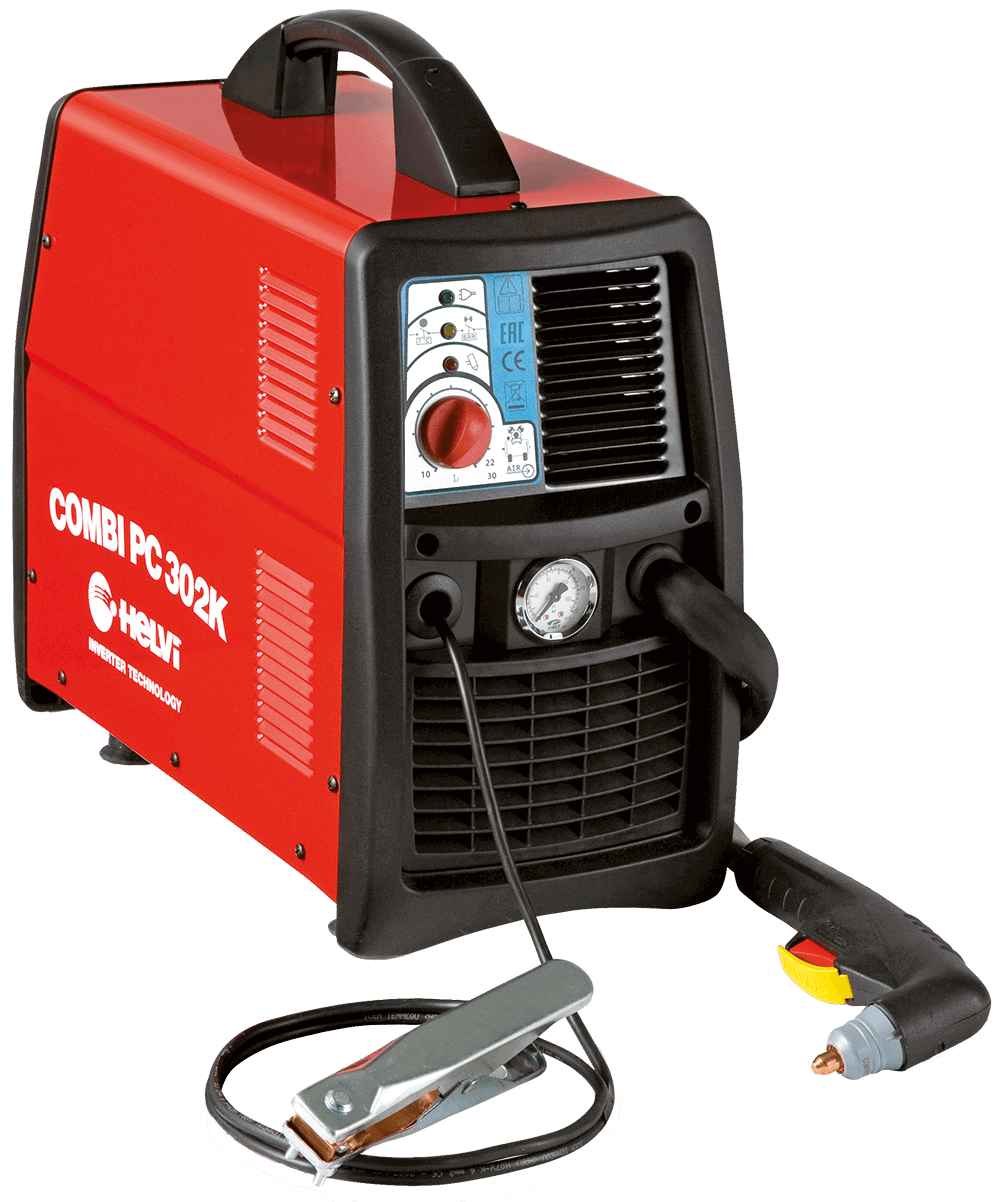

PC Combi 302K

Description

Plasma cutting systems based on inverter technology with internal compressor. Portable, single-phase, microprocessor-controlled and equipped with pneumatic torch without HF. Easily used even at some distance from a compressed air source, they produce quality cutting on all conductor materials such as steel, stainless steel, aluminium, copper, brass, etc. Suitable for lightweight and heavy bodywork, maintenance of large installations, air conditioning systems, shipyards and metalwork in general.

Technical data

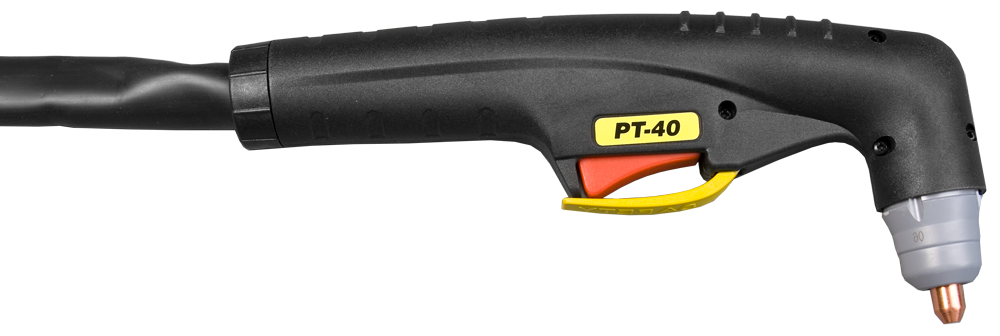

Plasma torch PT40C
Input voltage (1ph) 230V - 50/60Hz
Power 60% 2,5/3 KVA
No load output voltage 310 V Max
  INTERNAL COMPRESSOR EXTERNAL AIR
Range 10 ÷ 25 A 12 ÷ 28 A
Cutting current 25A @ 40%
12A @ 100%
28A @ 30%
12A @ 100%
Severance 8 mm 10 mm
Air pressure - 4 ,5 bar
Air capacity - 100 l/min
Insulation H
Protec. Degree IP22S
Machine (LxWxH) 200x435x395 mm
Package (LxWxH) 290x560x400 mm
Weight box/net 20,4 / 19,0 kg
Code 99830015

Download

Data sheet (1.3 Mb) Updated 01/09/2024
Spareparts list (220.7 kb) Updated 01/09/2024
User manual (2.9 Mb) Updated 22/04/2021
Eco Design (296.5 kb) Updated 28/12/2020

Features

CE EAC 1ph EN 60974-1 / EN 50192 / EN 60974-10 Air cooling Power generator friendly Power generator friendly 6,6 KVA Line voltage compensation Plasma Plasma_Pneumatic
