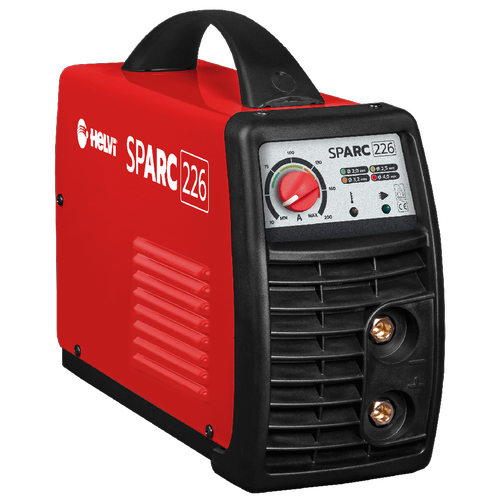

Easy-to-use welding inverter: optimum welding performance with all types of commercial electrodes (rutile, basic, stainless steel). They fit overvoltage, over temperature and anti-sticking control. As they are compact and lightweight, they are ideal for home/hobby applications.
Input voltage (1ph)  |
230V - 50/60Hz |
| Power 60% | 2,5 KW |
No load output voltage  |
70 V |
| Amp. Min-Max (H.S.) | 10 ÷ 160 A |
| Duty Cycle 40° | 160A @ 25% 100A @ 60% 80A @ 100% |
| Ø E | 1,6 ÷ 4,0 mm |
| Electrode type | 6013 - 7018 |
| Insulation | H |
| Protec. degree | IP22S |
Machine (LxWxH)  |
120x285x255 mm |
Weight box/net  |
3,7 / 4,2 Kg |
| Code | 99805992 |
